HZFS-016 2t round Stainless Steel Compression weighing round Load Cell weight sensor for Lamination Machine 5-10V

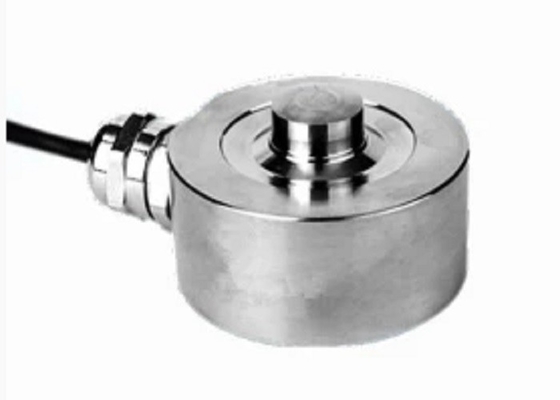

Large Image : HZFS-016 2t round Stainless Steel Compression weighing round Load Cell weight sensor for Lamination Machine 5-10V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	HZFS-016

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

0.2-2t

Recommended Excitation:

5-10V

Material:

Stainless Steel

Application:

Lamination Machine

Highlight:

Stainless Steel Compression weighing Load Cell

5-10V Compression weighing Load Cell

Lamination Machine Compression weighing Load Cell

Stainless Steel Mini Force Sensor 0.2-2t

Stainless Steel Mini Force Sensor 0.2-2t compression force measurement for hot and cold lamination machine

HZFS-016 Mini Force Sensor

Detailed Product Description:

Capacity: 0.2-2t

Recommended Excitation: 5-10V

Construction: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch,compression force measurement for hot and cold lamination machine,and grasping force measurement for robotic hands.

HZFS-016 2t round Stainless Steel Compression weighing round Load Cell weight sensor for Lamination Machine 5-10V 0

Load Cell Parameter:

Capacity	0.2-2t	Material	Stainless Steel
Rated Output	1.5-2.0mV/V	Output Impedance	700±3Ω
Zero Balance	±2% F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.5%F.S.	Recommended Excitation	5-10V
Hysteresis	0.5%F.S.	Maximum Excitation	15V
Repeatability	0.5%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.05% F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.05%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.05%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	750±15Ω	Cable Size	φ4x3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
