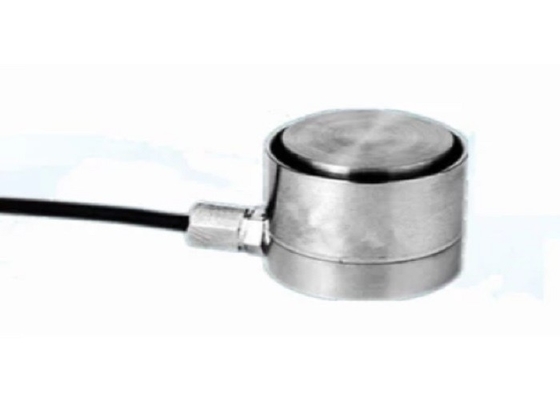

HZFS-012 150KN Truck Scale Weight round Load Cell Stainless Steel force sensor for robotic hand 1.5-2.0mV/V

Large Image : HZFS-012 150KN Truck Scale Weight round Load Cell Stainless Steel force sensor for robotic hand 1.5-2.0mV/V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	HZFS-012

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):	10KN~150KN	Recommended Excitation:	5V
Material:	Stainless Steel	Output:	1.5-2.0mV/V
Application:	Robotic Hand
Highlight:	robotic hand Weight Load Cell , Stainless Steel Weight Load Cell , 1.5-2.0mV/V Weight Load Cell

Mini Stainless Steel 10KN~150KN Force Sensor

Mini Stainless Steel 10KN~150KN Force Sensor Force measurement in small space installation

HZFS-012 Mini Stainless Steel 10KN~150KN Force Sensor

Detailed Product Description:

capacity: 10KN~150KN

Recommended Excitation: 5V

Material: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch,compression force measurement for hot and cold lamination machine,and grasping force measurement for robotic hands.

HZFS-012 150KN Truck Scale Weight round Load Cell Stainless Steel force sensor for robotic hand 1.5-2.0mV/V 0

HZFS-012 150KN Truck Scale Weight round Load Cell Stainless Steel force sensor for robotic hand 1.5-2.0mV/V 1

Capacity	10KN~150KN	Material	Stainless Steel
Rated Output	1.5-2.0mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0%F.S.	Recommended Excitation	5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.05%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.05%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.05%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±5Ω	Cable Size	φ2 x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
