Product Details:
Payment & Shipping Terms:
|
| Pattern: | Canister Compression Column Load Cell | Capacity: | 10t To 50t |
|---|---|---|---|
| Output: | 2mv/v | Material: | Alloy Steel，Stainless Housing |
| Appalication: | Truck Scale ，Hopper Scale ，Axle Load Scale | Interchangeable Brand: | HBM |
| 7.IP Protection Standard: | IP68 | Accuracy Grade: | C5 |
| Cable Length: | 16m | Size: | 10t：diameter：99mm Height:200mm |
| Highlight: | 10t Column Load Cell,C5 Column Load Cell,50t canister type load cell |
||

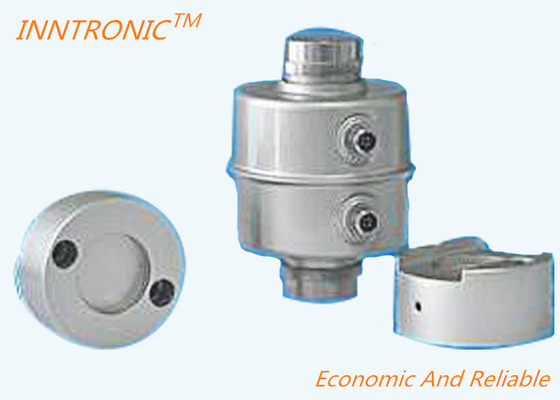

Railway Scale Waterproof Load Cell Double Shake Column Structure Digital Sensor for truck scale
FEATURES:
● Capacity 10t to 50t
● Double shake column structure digital sensor
● Hight degree of sealing
● OIML C5 approved
● Optional stainless steel, alloy steel available
● Optional fixed joint connector(ZSWF),Single air plugs(ZSWFB),Dual air plugs(ZSWFG)
APPLICATION:
● Truck Scale
● Hopper Scale
● Axle Load Scale
● Railway Scale
| Rated capacity | D1 | D2 | D3 | H1 | H2 | T1 | T2 |
| 10t,20t,30t,40t,50t,60t | 83.5 | 64 | 99 | 150 | 200 | M8 | M8 |
| SPECIFICATION: | |
| Rated capacity: 10ton to 50ton | Maximum safe overload: 150% OF R.C |
| Combined error: ±0.02% F.S | Ultimate safe overload: 200% OF R.C |
| Non-repeatability: ±0.01% F.S | Recommended Excitation: 7 to 15V DC |
| Non-linearity: ±0.01% F.S | Environment protection: IP68(ZSWGC)；IP69K(ZSWGB,ZSWG) |
| Hysteresis error: ±0.02% F.S | Communication BPS: 9600/19200 |
| Temperature effect on zero: ±0.012% F.S | Communication Mode: RS 485 |
| Temperature effect on output: ±0.1% F.S | Material: alloy steel+Stainless housing (ZSWG-AD,ZSWGB-AD,ZSWGC-AD) 100% made by stainless (ZSWG-ADSS,ZSWGB-ADSS,ZSWGC-ADSS) |
| Compensated temperature range: -10 to +40℃ | cable: length__16meter；diameter__φ8.8mm |
| Operating temperature range: -30 to +70℃ |
Install application environment:
A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.
At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.
Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.
If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.
