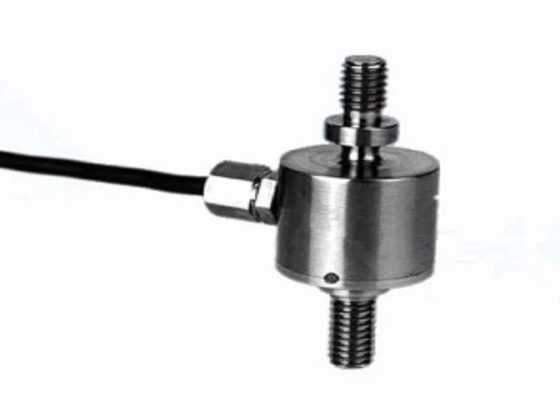

Load Cell HZFS-021 50kg Tension Stainless Steel Weight Mini weight Force Sensor weighing for small space keyboard switch

Large Image : Load Cell HZFS-021 50kg Tension Stainless Steel Weight Mini weight Force Sensor weighing for small space keyboard switch

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	HZFS-021

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

5~50kg

Recommended Excitation:

2.5~5V

Material:

Stainless Steel

Highlight:

keyboard switch Load Cell HZFS-021

50kg Load Cell HZFS-021

Stainless Steel Load Cell HZFS-021

Stainless Steel Screw Tension And Compression Force Sencor mini Load Cell

Stainless Steel Screw Tension And Compression Mini Force Sensor Load Cell in small space installation

HZFS-021 Screw Tension and Compression Force Sencor Load Cell

Detailed Product Description

Capacity: 5~50kg

Recommended Excitation: 2.5~5V

Material: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

Load Cell HZFS-021 50kg Tension Stainless Steel Weight Mini weight Force Sensor weighing for small space keyboard switch 0

Capacity	5-50kg	Material	Stainless Steel
Rated Output	1.0-1.5 mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0-5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350±5Ω	Cable Size	φ(2-3)x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
