Load Cell IN-60048 Stainless Steel IP68 Tension 500Lb Weight force Sensor For platform weight bench scale 2.0 mV/V

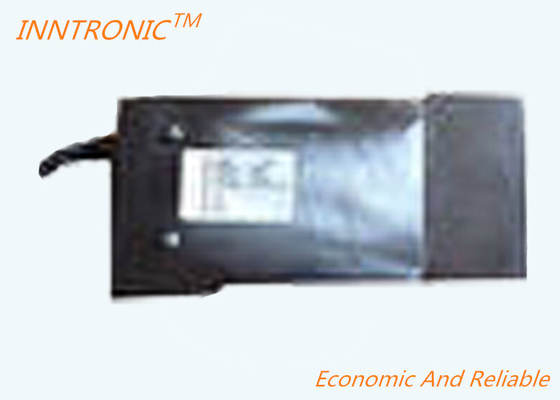

Large Image : Load Cell IN-60048 Stainless Steel IP68 Tension 500Lb Weight force Sensor For platform weight bench scale 2.0 mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-60048

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

TYPE:	Single Point Load Cell	Capacity:	25LB, 50LB, 100LB, 200LB, 400LB, 500LB, 1K LB
Output:	2mv/v	Material:	Stainless Steel/Alloy Steel
Application:	Platform Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP68	Accuracy Grade:	C3
Non-linearity:	0.03%	Size:	631.25
Highlight:	Stainless Steel tension sensor load cell , 400LB tension sensor load cell , 500 lb load cells for weighing

IN-60048 Single Point Load Cell for platform scale

Fatigue Resistance Single Point Load Cell , Weighing Machine Using Load Cell for platform scale

Interchangeable brand :

NCI Mark V Load Cell
Sensortronics 60048SS Load Cell
Weigh-Tronix Mark V Load Cell

RATED CAPACITY	DIMENSIONS
RATED CAPACITY	A	B	C	D	E	F	G	H	I
25-200LB	6	3	1	1.3	0.25	1	3.5	-	1/4-28UNF*0.75dp(4pics)
400-500LB	6	3	1	1.3	0.25	1	3.5	0.5	1/4-28UNF*0.75dp(8pics)
1K	6	3	1.5	1.8	0.25	1	3.5	1	5/16-24UNF*0.75dp(8pics)

Capacities	25LB, 50LB, 100LB, 200LB, 400LB, 500LB, 1K LB
Rated Output	2.0 mV/V
Safe Overload	150%FS
Excitation Voltage	10-20V AC/DC
Input Resistance	385 ± 10 OHMS
Output Resistance	350 ± 3 OHMS
Zero Balance	±1.00%FS
Seal Type	Environmentally sealed, potted IP67
Non-linearity	±0.03%FS
Hysteresis	±0.02%FS
Repeatablity	±0.02%FS
Creep	±0.03%FS
Compensated Temperature Range:	-10℃ - +40℃
Temperature Effect on Zero	±0.02%FS/℃
Temperature Eff ect on Output	±0.001%FS/℃
Insulation Resistance	>5000 MEGOHMS
Load Cell Cable	4 Conductor, 10 FT
Load Cell Wiring	Green +EXC Black –EXC White +SIG RED -SIG Braid/Yellow: Shield
