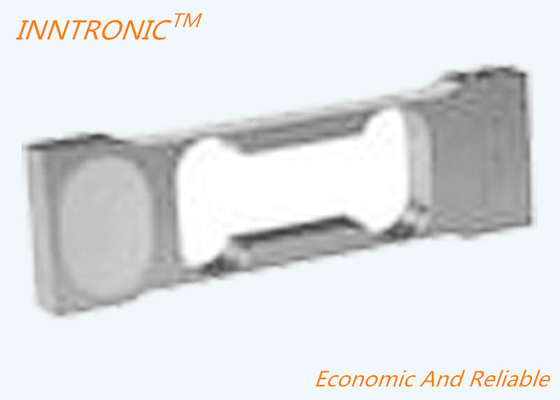

Single Point Load Cell IN-1004 3kg Aluminum Weight force sensor for Jewelry weighing scale 2mv/v IP 66

Large Image : Single Point Load Cell IN-1004 3kg Aluminum Weight force sensor for Jewelry weighing scale 2mv/v IP 66

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-1004

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Type:	Single Point Load Cell	Capacity:	300/450/600/1000/1200/1500/2000/3000g
Output:	2mv/v	Material:	Stainless Steel/Alloy Steel
Application:	Ecectronic Balances	Interchangeable With:	Vishay Tedea 1004 Load Cell
IP Protection Standard:	IP 66	Accuracy Grade:	A,B
Hysteresis:	0.01%	Linearity Deviation:	0.01%
Highlight:	2000g Aluminum Single Point Load Cell , Aluminum Single Point Load Cell Self Restoring , 3000g low capacity load cell

IN-1004 Single Point Load Cell for ecectronic balances

300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function for ecectronic balances

Special features:

Aluminum Load Cell
Creep precision up to 0.005%
Working video:https://youtu.be/5DuzXmzG-7Q

Interchangeable Products

Vishay Tedea 1004 Load Cell

PARAMETER	UNIT	TECHNICAL DATA
Rated capacity (Emax)	g	300/450/600/1000/1200/1500/2000/3000
Huazhun Grade		A	B
Sensitivity	mV/V	1.0+- 10% (1.6mv 10% available)
Zero balance	mV/V	0.02
Creep (From stable to 2min)	%	0.0033	0.005
Creep over 30min	%	0.008	0.012
Temperature effect on zero	%/	0.004
Temperature effect on output	%/	0.001
Hysteresis	%	0.01	0.01
Linearity deviation	%	0.01	0.01
Repeatability	%	0.01	0.01
Nominal temperature range		-10 to +40
Service temperature range		-30 to +70
Limit load	% of R.C.	150
Break load	% of R.C.	200
Nominal excitation	V	5~12
Max. excitation	V	15
Input impedance		405+- 10
Output impedance		350 +-3
Insulation resistance	M	>2000
Cable length	M	0.4
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code		+Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
Construction		Aluminum
Protection class to IEC529		IP 66
