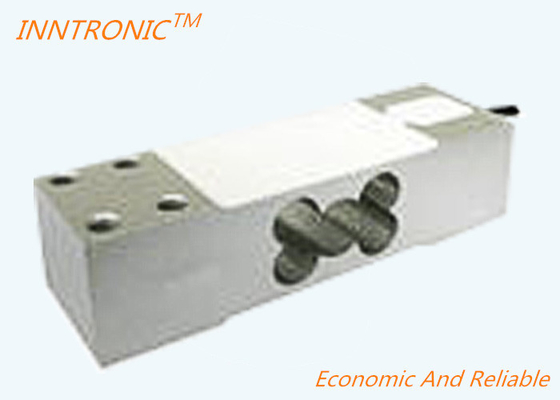

Single Point Load Cell IN-D42 500KG C3 Electronic Aluminum Weight force sensor for counting scale 2±0.1mV/V

Name: Single Point Load Cell IN-D42 500KG C3 Electronic Aluminum Weight force sensor for counting scale 2±0.1mV/V
Brand: inntronic
SKU: IN-D42
Rating: 4.9 (196 reviews)

Large Image : Single Point Load Cell IN-D42 500KG C3 Electronic Aluminum Weight force sensor for counting scale 2±0.1mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-D42

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	100~500KG Load Cell
Output:	2mv/v	Material:	Stainless Steel/Alloy Steel
Application:	Electronic Counting Scales	Interchangeable Brand:	HBM
IP Protection Standard:	IP67&IP68	Accuracy Grade:	C2
Hysteresis:	0.02%F.S	Size:	1504040
Highlight:	100kg Aluminum Single Point Load Cell , 500KG Aluminum Single Point Load Cell , electronic load cell IP65

IN-D42 100 to 500KG Single Point Load Cell for Electronic counting scales

Aluminum Alloy Load Cell 100kg To 500kg Hermetically Sealed With Glue To IP65 for Electronic counting scales

special features:

Rated load: 100~500(kg)
Precision: C2
Aluminum-alloy; Colourless anodized;
Hermetically sealed with glue to IP65.
APPLICATIONS:
Electronic counting scales, platform scales etc.
DIMENSIONS:
Size: 150x40x40(mm) Thread hole: 9-M8

PARAMETERS:
Comprehensive error: 0.017%F.S & 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.1mV/V	Excitation voltage: 9VDC~12VDC
Non-linearity: 0.017%F.S & 0.02%F.S	Compensated temp.range: -10℃~+40℃
Hysteresis: 0.02%F.S	Use temp.range: -20℃~+60℃
Repeatability: 0.01%F.S & 0.02%F.S	Temp.effect on zero: 0.017%F.S/10℃ & 0.03%F.S/10℃
Creep: 0.017%F.S/10min & 0.02%F.S/10min	Temp.effect on span: 0.014%F.S/10℃ & 0.02%F.S/10℃
Zero balance: ±1%F.S	Safe overload: 120%
Input resistance: 405±10Ω	Ultimate overload: 150%
Output resistance: 350±3Ω	Defense class: IP67&IP68
