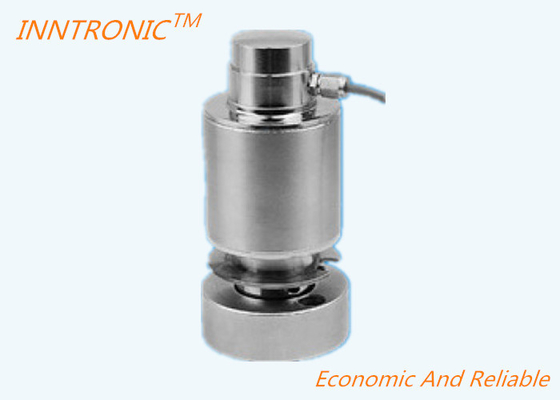

Product Description:
The insulation resistance of the Column Load Cell C3 Canister Rocker Pin is 5,000 Megohms, which means that it is highly resistant to electrical interference. This ensures that the load cell will provide accurate measurements, even in environments where there is a lot of electrical noise.
The nominal excitation for the Column Load Cell C3 Canister Rocker Pin is 5-12V. This means that it requires a relatively low amount of power to operate, making it an energy-efficient choice for load measurement applications.
The load cell cable for the Column Load Cell C3 Canister Rocker Pin is 14m in length and has the following color coding: +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht. This makes it easy to connect the load cell to other equipment and ensures that the signal is transmitted accurately.
Features:
- Product Name: Column Load Cell
- Type: Column-Type Load Cell C3 Canister Rocker Pin
- Cable Length: 14m
- Cable: Diameter__φØ6mm
- Nominal excitation: 5-12V
- Load Cell Cable: +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
Technical Parameters:
| Technical Parameter |
Value |
| Type |
Column-Based Load Cell C3 Canister Rocker Pin |
| Material |
Alloy Steel, Stainless Steel |
| Nominal Excitation |
5-12V |
| Input Resistance |
700±20 Ohms |
| Output Resistance |
703±20 Ohms |
| Operating Temperature Range |
-30 to +70°C |
| Creep over 30min |
0.02% of Cn |
| Repeatability |
0.017% of Cn |
| Limit Load & Break Load |
120/150% of EMax |
| Cable |
Diameter_Φ6mm |
| Load Cell Cable |
+Exc-Red, +Sig-grn, -Exc-Blk, -Sig-Wht |
Applications:
This column-type load cell is made of high-quality alloy steel and stainless steel materials. It is designed to withstand the harsh conditions of industrial environments. It has a cable length of 14m, which provides flexibility in installation and usage.
The INNTRONIC IN-C16 Column-Type Load Cell is widely used in the following occasions and scenarios:
- Industrial Weighing: This load-measuring sensor is commonly used in industrial weighing applications. It is widely used in the weighing of heavy loads in various industries such as automotive, aerospace, and construction.
- Force Measurement: This load-measuring sensor is also used for force measurement applications. It is ideal for measuring the force in hydraulic presses, presses, and other industrial machines.
- Material Testing: This load-measuring sensor is also used in material testing applications. It is ideal for measuring the strength and durability of various materials such as concrete, steel, and wood.
- Tension and Compression Testing: This load-measuring sensor is also used in tension and compression testing applications. It is ideal for measuring the force exerted on various components and materials in different conditions.
- Research and Development: This load-measuring sensor is also used in research and development applications. It is ideal for measuring the force, load, and weight of various components and materials during product development and testing.
The INNTRONIC IN-C16 Column-Type Load Cell has an insulation resistance of 5,000 Megohms and a repeatability of 0.017% of Cn. These attributes ensure that this load-measuring sensor provides accurate and consistent readings. With its reliable and accurate measurement capabilities, the INNTRONIC IN-C16 Column-Type Load Cell is a must-have for anyone looking for a high-quality load-measuring sensor.
Manufactured in China, the INNTRONIC IN-C16 Column-Type Load Cell is a top-of-the-line load-measuring sensor that can be used in various industries and sectors.
