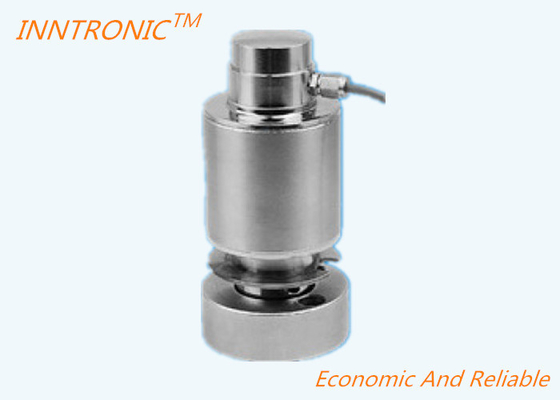

Product Description:
The Column Load Cell features a nominal excitation of 5-12V, ensuring that it delivers consistent and accurate readings every time. With an input resistance of 700±20 Ohms and an output resistance of 703±20 Ohms, this load cell is capable of delivering highly accurate readings with minimal interference from external factors.
The Column Load Cell is equipped with a 14m cable, providing ample length for connecting to a wide range of devices and systems. Additionally, the load cell boasts an insulation resistance of 5,000 Megohms, providing reliable performance even in harsh and demanding environments.
With a repeatability of 0.017% of Cn, the Column Load Cell is capable of delivering highly precise and consistent readings, making it an ideal choice for applications that require accurate load measurements. Whether you're measuring compressive forces in a manufacturing environment or monitoring weight loads in a commercial setting, the Column Load Cell is the perfect tool for the job.
Features:
- Product Name: Column Load Cell
- Insulation Resistance: 5,000 Megohms
- Limit load & Break load: 120/150 % Of EMax.
- Operating Temperature Range: -30 To +70°C
- Repeatability: 0.017% of Cn
- Creep over 30min: 0.02% of Cn
- Force-Sensing Transducer
- Force Measuring Transducer
- Force-Sensing Transducer
Technical Parameters:
| Force Measuring Transducer Type: |
Column-Type Load Cell |
| Nominal Excitation: |
5-12V |
| Creep Over 30min: |
0.02% of Cn |
| Limit Load & Break Load: |
120/150% of EMax |
| Hysteresis Error: |
0.017% of Cn |
| Operating Temperature Range: |
-30 to +70°C |
| Insulation Resistance: |
5,000 Megohms |
| Cable: |
Diameter_φØ6mm |
| Input Resistance & Output Resistance: |
700±20 & 703±20 Ohms |
| Load Cell Cable: |
+Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht |
| Material: |
Alloy Steel, Stainless Steel |
Applications:
The IN-C16 is equipped with a load cell cable that has a length of 14m and is color-coded for easy installation. The load cell cable is composed of +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht wires that transmit signals from the load cell to the measuring instrument. The load cell has a hysteresis error of 0.017% of Cn and a repeatability of 0.017% of Cn, ensuring precise and consistent results.
The IN-C16 Column Load Cell has a wide range of applications and scenarios, including:
- Industrial Weighing: The load cell is commonly used to measure the weight of products and materials in the industrial sector. It is ideal for weighing heavy objects such as trucks, shipping containers, and machinery.
- Food Processing: The load cell is utilized in the food industry to measure the weight of raw materials, ingredients, and finished products. It ensures that the correct quantities are used in the production process, resulting in consistent quality.
- Testing and Calibration: The load cell is used in the testing and calibration of equipment, ensuring that they meet the required standards. It is ideal for use in laboratories and testing facilities.
- Automotive Industry: The load cell is used to measure the weight of vehicles and their components, ensuring they meet the required safety standards.
- Medical Equipment: The load cell is utilized in the medical industry to measure the weight of patients, equipment, and supplies. It is ideal for use in hospitals, clinics, and laboratories.
In conclusion, the INNTRONIC IN-C16 Column Load Cell is an accurate and reliable load-measuring transducer that is perfect for a wide range of applications. Its high-quality materials, precise measurements, and easy installation make it an ideal choice for various industries.
