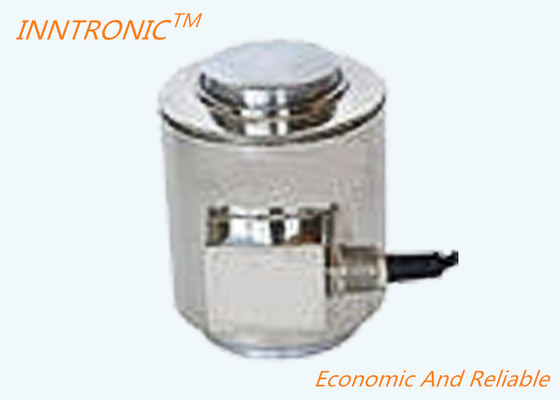

IN-CC22 C2 Accuracy Column Load Cell with 5-12V Nominal Excitation for truck scale

Product Description:

Our Column Load Cell features a limit load and break load of 120%/150% of EMax, ensuring that it can handle even the toughest loads with ease. With a service temperature range of -30 to +70℃, this load-measuring transducer can be used in a wide range of environments, making it incredibly versatile and reliable.

One of the key features of our Column Load Cell is its exceptional repeatability of 0.017% of Cn, which ensures that you get consistent and accurate readings every time you use it. This makes it an ideal force-sensing transducer for a wide range of applications, including industrial, commercial, and scientific settings.

Our Column Load Cell is available in a range of capacities, from 5T to 450T, making it suitable for a wide range of load measurement requirements. Whether you need to measure small loads or large ones, our load cell can handle it all with ease.

Investing in our Column Load Cell is an excellent choice if you need a reliable and accurate force-measuring transducer that can handle even the toughest loads. With its high accuracy, wide temperature range, and exceptional repeatability, it is the ideal load-measuring transducer for a wide range of applications. So why wait? Order yours today and experience the precision and reliability that only our Column Load Cell can deliver!

Features:

• Product Name: Column Load Cell
• Accuracy: C3
• Repeatability: 0.017% Of Cn
• Load-Measuring Transducer
• Force-Sensing Transducer
• Nominal excitation: 5~12V
• Load Cell Cable: +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
• Cable: 14M

Technical Parameters:

Applications:

The IN-CC22 Column-Type Load Cell is ideally suited for use in a range of weighing applications, including industrial weighing, force measurement, and material testing. This load cell has a zero balance of 0±0.02 MV/V and an output (cn) of 2.0 ±0.02 MV/V, making it highly sensitive to even the slightest changes in weight or force. The load cell also has a high insulation resistance of >5000MΩ, ensuring reliable and accurate readings in even the harshest industrial environments.

The IN-CC22 Column-Type Load Cell has a limit load and break load of 120 /150% of EMax, ensuring that it can withstand high loads without breaking or failing. The load cell also has a service temperature range of -30 To +70℃, making it suitable for use in a wide range of industrial environments.

The IN-CC22 Column-Type Load Cell is highly repeatable, with a repeatability of 0.017% of Cn. This ensures that readings are consistent and accurate, even over extended periods of use.

Overall, the INNTRONIC IN-CC22 Column-Type Load Cell is a highly reliable and accurate force measuring transducer that is ideally suited for use in a wide range of industrial weighing applications. Whether you are measuring the weight of materials, testing the strength of industrial equipment, or monitoring production processes, the IN-CC22 is the perfect load cell for the job.
