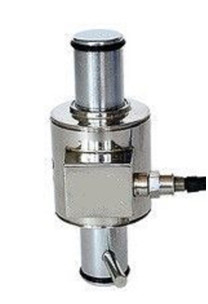

CL011 Truck Scale Column Load Cell 50K, 100Klb 150% Maximum Safe Overload Capacity 10-20VDC

Product Description:

The column load cell has a rated excitation of 10-20VDC, which means that it requires a voltage of 10-20VDC to operate effectively. It also has an insulation resistance of ≥5000 Megohms, which ensures that it can withstand high voltage without any damage. This makes it ideal for use in harsh industrial environments.

The compensated temperature range of the column load cell is 0℃ - 30 ℃, which means that it can operate effectively within this temperature range. This is important because temperature variations can affect the accuracy of the load cell. The maximum safe overload of the column load cell is 150% FS, which means that it can withstand forces up to 150% of its full scale capacity without any damage.

The use of alloy steel or stainless steel in the construction of the column load cell makes it suitable for use in a variety of applications such as weighing systems, force measurement, and material testing. It is also commonly used in industries such as aerospace, automotive, and manufacturing.

Features:

• Product Name: Column Load Cell
• Output resistance: 1000+-5ohms
• Load cell cable: 4 Conductorbraided, 50FT
• Application: Truck Scale
• Compensated temperature range: 0℃ - 30 ℃
• Maximum safe overload: 150% FS
• Output Description: The Column Load Cell is a force measuring transducer also known as a load-measuring transducer. It is designed for use in truck scales and features an output resistance of 1000+-5ohms, a 4 conductor braided 50FT load cell cable, a compensated temperature range of 0℃ - 30 ℃, and a maximum safe overload of 150% FS.

Technical Parameters:

This product is a Column-Based Load Cell, also known as a Force Measuring Transducer or Force-Sensing Transducer.

Applications:

Manufactured in China, the CL011 is a versatile load cell that can be used in a wide range of applications. It is commonly used in material testing machines, hydraulic presses, and other force measurement applications that require accurate and reliable force sensing. It can also be used in tanks and silos for weight measurement.

The CL011 load cell comes with a 4 conductor braided cable that is 50 feet long, allowing for easy installation and connection to other equipment. It has a maximum safe overload of 150% full scale, ensuring that it can withstand sudden or unexpected changes in force without damage. Rated excitation of 10-20VDC guarantees a stable and constant voltage supply for accurate measurement.

In addition, the INNTRONIC CL011 column load cell has excellent insulation resistance, with a minimum value of ≥5000 Megohms. This ensures high accuracy and stability in the presence of electrical interference and reduces the risk of damage due to electrical surges or other disturbances.

Overall, the INNTRONIC CL011 Column Load Cell is a reliable and accurate force-sensing transducer that can be used in a variety of applications. Whether you need to measure compression forces in a material testing machine or monitor the weight of a tank or silo, the CL011 is an excellent choice. Its high input and output resistance, long load cell cable, and maximum safe overload make it a versatile load cell that can be used in many different scenarios.
