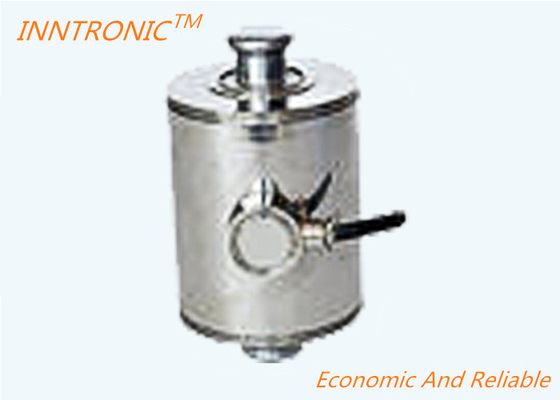

IN-CL015 25-45t 0.02% Creep Error IP68 truck scale Stainless Column Load Cell for Precision Weighing and Industrial

Product Description:

One of the key features of this load cell is its high insulation resistance, which is rated at ≥5000 Megohms. This ensures that the load cell is well-protected against electrical interference, making it highly reliable and accurate. Additionally, its input and output resistance are 700±20 and 703±20 Ohms, respectively.

The creep error of this load cell is also minimal, with a 30-minute creep error of only 0.02% of Cn. This makes it an ideal choice for applications where precision and accuracy are critical. Moreover, it comes with an IP68 protection standard, which means that it can withstand harsh environments without compromising its performance.

The Column-Type Load Cell's output and zero balance are rated at 2.0 ±0.02 and 0±0.02mV/V, respectively. This means that it can provide highly accurate and reliable measurements, even in the most challenging industrial environments.

Features:

• Load-Measuring Transducer
• Product Name: Column Load Cell
• Application: Truck Scale
• Rated Excitation: 5~12V
• Insulation Resistance: ≥5000 Megohms
• Capacity: 25t, 30t, 45t
• Service temperature range: -30 To +70℃
• Column-Based Load Cell

Technical Parameters:

Applications:

The IN-CL015 load cell is suitable for use in a wide range of applications and scenarios. It is commonly used in weighing systems for industrial weighing, such as in silos, tanks, hoppers, and other vessels. The column-type load cell is also suitable for use in force measurement applications, including testing machines and material testing. The load cell is particularly useful in applications where there is a need for high accuracy and reliability.

The IN-CL015 load cell has a service temperature range of -30 to +70℃, making it suitable for use in extreme temperatures. The load cell cable is color-coded for easy installation and includes four wires: +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht. The input resistance and output resistance of the load cell are 700±20 and 703±20 Ohms, respectively, and the maximum safe overload is 120/150% FS. The load cell has an IP68 protection standard, which means it is dust-tight and can withstand immersion in water for extended periods.

Overall, the INNTRONIC IN-CL015 Column-Type Load Cell is a reliable and accurate load-measuring transducer that is suitable for use in a wide range of applications and scenarios. Its high accuracy, durability, and IP68 protection standard make it an ideal choice for use in harsh industrial environments where there is a need for accurate and reliable weight or force measurement.
