Product Description:
With an input resistance of 700±20 Ohms and output resistance of 703±20 Ohms, this Force-Sensing Transducer delivers highly accurate and stable readings. Its service temperature range of -30 To +70℃ makes it ideal for use in extreme environments, while its IP68 protection standard ensures complete protection against dust and water ingress.

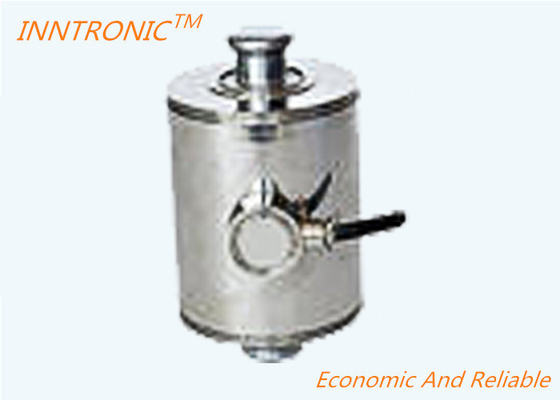

Available in capacities of 25t, 30t, and 45t, this Column Load Cell is suitable for a wide range of force measurement applications. Its compact design allows for easy installation and integration into existing systems, while its high precision and reliability make it an ideal choice for demanding industrial environments.
Features:
- Product Name: Column Load Cell
- Material: Alloy Steel, Stainless Steel
- Insulation Resistance: ≥5000 Megohms
- Application: Truck Scale
- Creep error(30min): 0.02% Of Cn
- Rated Excitation: 5~12V
- Features: Column-Based Load Cell, Force Measuring Transducer
Technical Parameters:
| Parameter |
Value |
| Application |
Truck Scale |
| Rated Excitation |
5~12V |
| Load cell cable |
+Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht |
| Creep error(30min) |
0.02% Of Cn |
| IP Protection Standard |
IP68 |
| Service temperature range |
-30 To +70℃ |
| Output(cn)/Zero Balance/ |
2.0 ±0.02 /0±0.02mV/V |
| Capacity |
25t, 30t, 45t |
| Maximum safe overload |
120 /150% FS |
| Insulation Resistance |
≥5000 Megohms |
Applications:
The IN-CL015 Column Load Cell is designed to measure the compression force of materials and structures, making it ideal for use in various scenarios. This load-measuring transducer is capable of withstanding a maximum safe overload of 120/150% FS, making it suitable for heavy-duty applications in construction, mining, and industrial settings.
This product is available in different capacities, including 25t, 30t, and 45t, making it versatile and suitable for use in different load-bearing situations. The IN-CL015 also boasts an impressive creep error of just 0.02% of Cn, ensuring accurate readings even in extended use scenarios.
The rated excitation of the IN-CL015 is 5~12V, making it compatible with most load cell interface devices. The IN-CL015 Column Load Cell can be used in a range of applications, including crane scales, truck scales, and other weighing systems. This product is easy to install and comes with a user manual to guide you through the setup process.
Overall, the IN-CL015 Column Load Cell is a reliable and robust load-measuring sensor that can be used in different scenarios and applications. This force measuring transducer is a must-have for any industry that requires accurate and reliable load measurement. Get in touch with INNTRONIC today to find out more about the IN-CL015 Column Load Cell.
