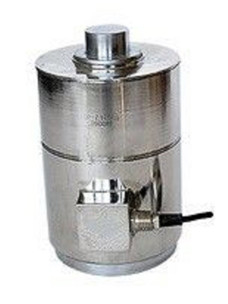

Product Description:
With an input resistance of 385±15 Ohms and output resistance of 350±5 Ohms, this load cell delivers precise and consistent readings, ensuring accurate measurement of loads and forces. The insulation resistance of ≥5000 Megohms ensures that the load cell is protected against electrical interference, making it a safe and reliable choice for use in a variety of environments.
The creep error of ±0.03% FS over 30 minutes ensures that the load cell maintains its accuracy over extended periods of use, making it suitable for applications where continuous monitoring of loads and forces is required.
Our Column-Type Load Cell is easy to install and can be used in a range of applications, including industrial weighing, process control, and automation. With its high accuracy and reliability, this load cell is the perfect choice for a variety of industries, including manufacturing, aerospace, and automotive.
Features:
- Product Name: Column Load Cell
- Type: Column-Based Load Cell
- Load-Measuring Sensor
- Load cell cable: +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
- Insulation Resistance: ≥5000 Megohms
- Application: Truck Scale
- Creep error(30min): ±0.03% FS
- Output Resistance: 350±5 Ohms
Technical Parameters:
| Technical Parameter |
Value |
| Compensated Temperature |
-10℃——+50℃ |
| Rated Excitation |
10V(DC/AC) |
| Input Resistance |
385±15 Ohms |
| Maximum Safe Overload |
120% FS |
| Ip Protection Standard |
IP68 |
| Insulation Resistance |
≥5000 Megohms |
| Capacity |
50Klb, 75Klb, 100Klb |
| Load Cell Cable |
+Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht |
| Material |
Alloy Steel, Stainless Steel |
| Application |
Truck Scale |
Applications:
The INNTRONIC CL016 Column-Based Load Cell is ideal for use in Truck Scales. It is a reliable and accurate load cell that can withstand harsh environments and heavy loads. The load cell's column-based design allows it to measure weight accurately, even when the load is off-center. This makes it an excellent choice for applications where the load may shift during weighing.
The INNTRONIC CL016 Column-Based Load Cell can be used in a variety of scenarios. It is suitable for use in industrial environments where heavy loads need to be weighed accurately. It can be used in truck scales, railway scales, and other weighing applications. The load cell's IP68 rating makes it suitable for use in outdoor environments where it may be exposed to dust, dirt, and water.
The INNTRONIC CL016 Column-Based Load Cell is easy to install and maintain. Its compact size makes it easy to fit into tight spaces, and its robust construction ensures that it will last for many years. The load cell's accuracy and reliability make it an excellent choice for applications where precision weighing is essential.
