Product Description:
With a rated excitation of 10-12V DC, this column-based load cell provides accurate and stable readings even under varying load conditions. Its output resistance of 352±3, 352±5(L≥15m) Ohms ensures that the signal is not affected by external factors such as temperature fluctuations or electromagnetic interference.
Our column-type load cell also has a maximum safe overload of 150% of full scale, making it highly resilient and able to withstand sudden and unexpected loads. This feature helps to protect the load cell from damage and ensures that it lasts for many years.
In addition, this load cell has an IP68 protection standard (10~40t), which means it is fully protected against dust and water ingress. This makes it suitable for use in challenging environments where moisture and dust are prevalent.
Designed specifically for use in truck scales, this column-type load cell offers high accuracy and stability. Its rugged construction and advanced features make it a reliable and cost-effective choice for weighing heavy loads.
Features:
- Product Name: Column Load Cell
- Maximum safe overload: 150% Full Scale
- Rated Excitation: 10-12V DC
- Output Resistance: 352±3, 352±5(L≥15m) Ohms
- Capacity: 25t, 30t, 40t, 50t, 60t, 90t
- Creep error(30min): ±0.03%, ±0.05% Full Scale
- Keywords: Force Measuring Transducer, Load-Measuring Transducer, Force Measuring Transducer
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Column-Type Load Cell |
| Load Capacity |
25t, 30t, 40t, 50t, 60t, 90t |
| Compensated Temperature |
-10°C To 40°C |
| Insulation Resistance |
≥5000 Megohms |
| Creep Error (30min) |
±0.03%, ±0.05% Full Scale |
| Material |
Alloy Steel, Stainless Steel |
| Rated Excitation |
10-12V DC |
| Output Resistance |
352±3, 352±5(L≥15m) Ohms |
| IP Protection Standard |
IP68(10~40t) |
| Application |
Truck Scale |
| Maximum Safe Overload |
150% Full Scale |
| Output |
Load-Measuring Sensor, Force Measuring Transducer |
Applications:

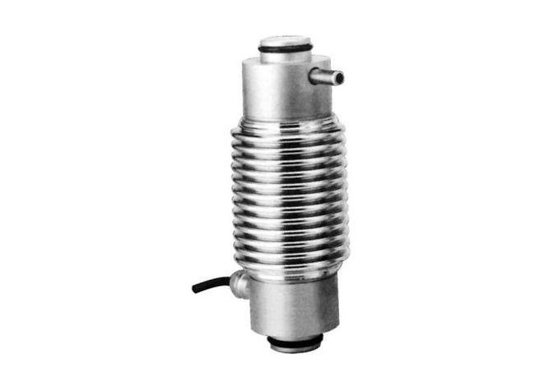

INNTRONIC's IN-CC24 Column-Type Load Cell is a high-precision force-sensing transducer that is widely used in various weighing measurement and control scenarios. It is manufactured in China and comes in different capacities: 25t, 30t, 40t, 50t, 60t, and 90t, which makes it suitable for handling different weight ranges.
The IN-CC24 Column-Based Load Cell is designed to provide accurate and reliable weight measurements even in harsh industrial environments. It has an IP68 protection standard, which means that it is dustproof and waterproof and can withstand harsh weather conditions. This makes it perfect for outdoor applications such as vehicle weighing, bridge construction, and weighing of large agricultural and mining vehicles.
The IN-CC24 Column-Type Load Cell has an output resistance of 352±3, 352±5(L≥15m) Ohms, which ensures that it provides stable and consistent readings. It has a rated excitation of 10-12V DC, which ensures that it consumes minimal power while providing accurate results.
The IN-CC24 Column-Based Load Cell has a creep error of ±0.03%, ±0.05% Full Scale, which makes it highly accurate even when measuring heavy loads. It can be used in different weighing applications such as truck scales, rail scales, and hopper scales.
In conclusion, the INNTRONIC IN-CC24 Column-Type Load Cell is a reliable and accurate force-sensing transducer that can be used in various weighing applications. Its high-precision measurements, low power consumption, and robust design make it suitable for different industrial environments.
