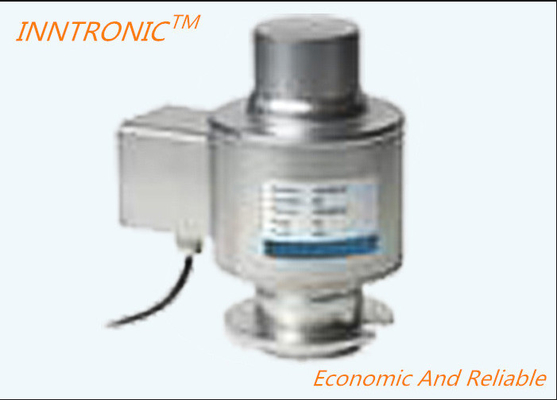

Product Description:
Our Column-Based Load Cell is known for its exceptional accuracy, with a Combined error of only 0.02% Full Scale. It has a Rated Excitation of 5 VDC To20 VDC, which ensures reliable and stable performance. Its Insulation Resistance of 5,000megohms adds to its durability and makes it suitable for use in a wide range of industrial applications.
This Column-Type Load Cell has an Accuracy Grade of C5, which ensures that it provides consistent and precise measurement results. It is designed to measure compressive forces, making it ideal for use in industrial settings where compression forces need to be measured accurately.
Our Column-Based Load Cell is easy to install and use, making it a popular choice among engineers and technicians. It has a compact design that allows it to be installed in tight spaces, and it comes with all the necessary hardware for installation.
Overall, our Column-Based Load Cell is a reliable and accurate solution for measuring compressive forces in industrial settings. Its durable construction, high accuracy, and ease of use make it an ideal choice for a wide range of applications.
Features:
- Product Name: Column Load Cell
- Ip Protection Standard: IP68
- Accuracy Grade: C5
- Rated Excitation: 5 VDC To 20 VDC
- Application: Truck Scale
- Maximum Safe Overload: 150% Full Scale
- Load-Measuring Transducer
- Load-Measuring Sensor
- Load-Measuring Transducer
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Column-Type Load Cell |
| Material |
Stainless Steel |
| Compensated Temperature |
-10°C To 40°C |
| IP Protection Standard |
IP68 |
| Maximum Safe Overload |
150% Full Scale |
| Accuracy Grade |
C5 |
| Application |
Truck Scale |
| Rated Excitation |
5 VDC To 20 VDC |
| Capacity |
20t – 50t |
| Insulation Resistance |
5,000megohms |
| Combined Error |
0.02% Full Scale |
| Product Type |
Load-Measuring Transducer, Force Measuring Transducer |
Applications:
The ISC Column-Based Load Cell is specifically designed to measure the weight of heavy-duty vehicles, such as trucks, trailers, and tankers. It can also be used in industrial weighing applications, such as weighing tanks, hoppers, and silos. The load cell is capable of measuring weights ranging from 20t to 50t with an accuracy grade of C5.
The ISC Column-Based Load Cell is manufactured in China and has a high output resistance of 700 (±35) Ohms. This ensures that the load cell provides accurate and reliable readings, even in high vibration and shock environments.
The Column-Type Load Cell is easy to install and can be mounted on various types of load-bearing structures, such as steel columns, concrete piers, and beams. It has a compact design and can be used in limited space applications.
The ISC Column-Based Load Cell is suitable for a wide range of applications and scenarios. It can be used in weighbridges, truck scales, and axle weighing systems. The load cell is also ideal for use in industrial weighing applications, such as batching, filling, and packaging systems.
Overall, the INNTRONIC ISC Column-Based Load Cell is a reliable and accurate weighing sensor that is suitable for a wide range of industrial applications. With its high insulation resistance and output resistance, this load cell provides accurate and stable readings, even in harsh environments.
