MY-GZJ-PWJ 1-4 Heads 20-150ml (customizable) Spray Filling Production machine Line 30-80 Bottles/minute

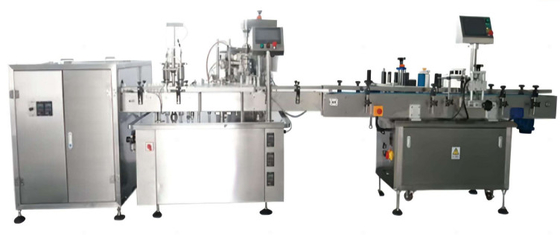

Spray filling production line

Features

The full-automatic spray filling production linkage line consists of a bottle conveying machine and a spray filling valve capping machine, which can automatically complete the processes of bottle sorting, bottle conveying, filling, valve filling, capping, etc., and is highly in line with GMP requirements. The equipment that forms the linkage line can be used separately.

The control system is sensitive, stable in performance, and easy to operate; The main engine transmission part can adopt variable frequency speed regulation to meet different production requirements; Continuous bottle entry and exit method, without squeezing or overturning of bottles; The installation is equipped with a metering pump fine-tuning device, which has high metering accuracy and convenient adjustment; The star shaped turntable is quick to replace and easy to operate; The capping head (rotary capping head or rolling capping head) can be freely replaced to adapt to different bottle caps (plastic caps or aluminum caps)

Parameters

Equipment model: MY-GZJ-PWJ

Filling speed: 30-80 bottles/minute

Applicable bottle height: 25-200mm

Filling head count: 1-4 heads

Power and voltage: 3.8KW 220V

Filling range: 20-150ml (customizable)

Filling accuracy: ± 1%

Applicable bottle diameter: 12-100mm

Number of capping heads: 1-2 heads

Equipment size: 6000 * 1400 * 1700mm
