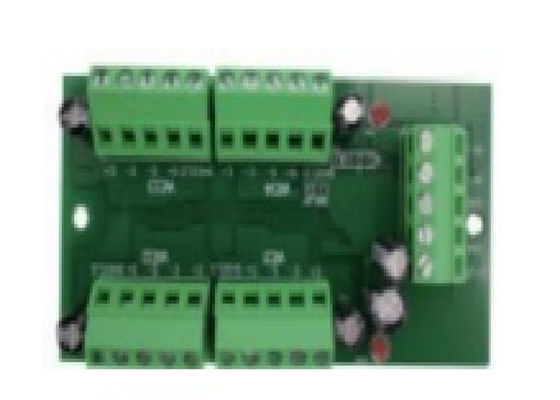

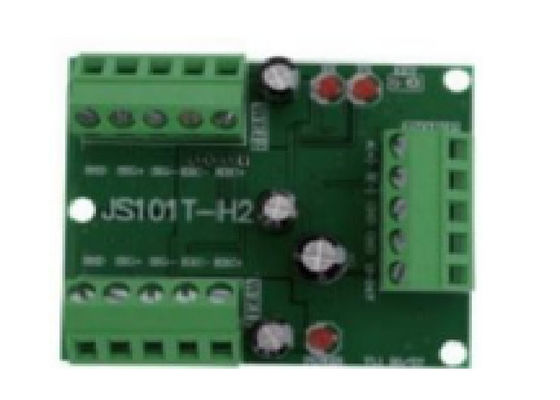

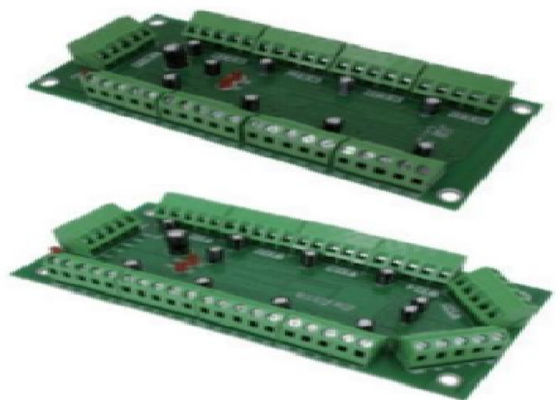

SJ10ICHN RS485 green Multi-channel Weight/pressure Module transmitter PCB 10 Channels For Intelligent Sales Container

Name: SJ10ICHN RS485 green Multi-channel Weight/pressure Module transmitter PCB 10 Channels For Intelligent Sales Container
Brand: inntronic
SKU: SJ10ICHN
Rating: 4.7 (128 reviews)

Large Image : SJ10ICHN RS485 green Multi-channel Weight/pressure Module transmitter PCB 10 Channels For Intelligent Sales Container

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	SJ10ICHN

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	L/C, T/T
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Signal:

RS485

Channel:

10 Channels

Application:

Intelligent Sales Container

Highlight:

RS485 weight/pressure module PCB

10 channels weight/pressure module PCB

SJ10ICHN RS485 Multi-channel weighing/pressure acquisition module for intelligent sales container

Features:

SJ101CH X supports independent weighing of 2 channels, 4 channels, 8 channels and 10 channels .

Each way can set different range accuracy, each way can be connected with 1-4350R weighing or pressure sensors.

The module uses the standard MODBUS-RTU protocol for RS485 interfaces. One command can read out N - channels weighing data.

Supports multi-channel networking and can combine more routes for weighing.

Equipped with weighing set height debugging software.

Application:

Can be applied to customers intelligent electronic scale, connected to Android, MCU, computers, PLC and other equipment to achieve more complex functions. Such as garbage recovery system, intelligent sales container, intelligent sorting, etc.

number of divisions

100000

Communication frequency

30HZ

accuracy

10000

s ample frequency

10HZ

input voltage

12-24V

protocol

MODBUS-RTU

excitation voltage

Communication parameter

By parameter setting

operating current

<60MA per channel

Number of input sensors

1-4 350R weighing or pressure sensors

SJ10ICHN RS485 green Multi-channel Weight/pressure Module transmitter PCB 10 Channels For Intelligent Sales Container 0
