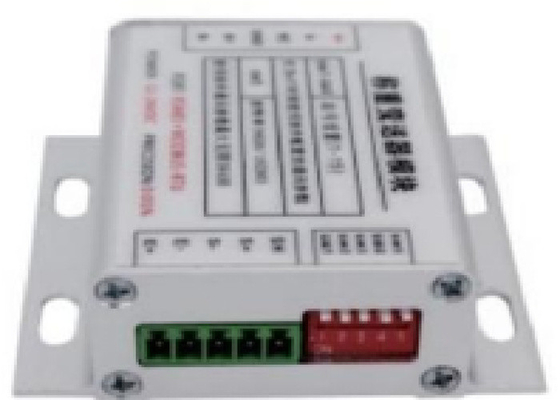

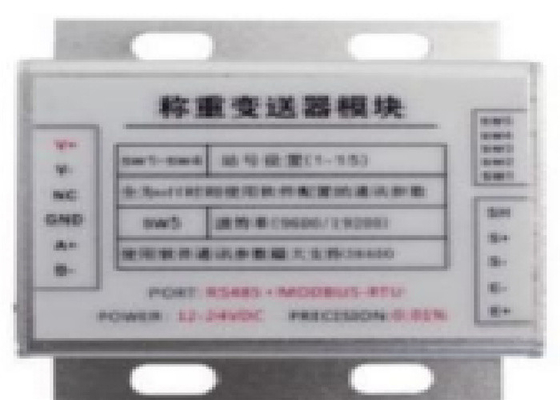

SJ101CX White Weight/force Module with box RS485 RS232 MODBUS-RTU 10-40HZ For Garbage Recovery System 12-24V

Large Image : SJ101CX White Weight/force Module with box RS485 RS232 MODBUS-RTU 10-40HZ For Garbage Recovery System 12-24V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	SJ101CX

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	L/C, T/T
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Signal:

RS485 RS232

Communication:

MODBUS-RTU

Application:

Garbage Recovery System

Highlight:

MODBUS-RTU SJ101CX Weight/force module

white SJ101CX Weight/force module

RS485 RS232 SJ101CX Weight/force module

SJ101CX Weighing/pressure acquisition module RS485 or RS232 for garbage recovery system

Features:

SJ101CX RS485 or RS232 ports are optional.

Support standard MODBUS-RTU protocol, can be set up station to achieve multi-set networking.

The RS232 interface also supports custom formats, including commercially available data output formats.

Equipped with computer test software

Application:

Can be applied to customers intelligent electronic scale, connected to Android, MCU, computers, PLC and other equipment to achieve more complex functions. Such as garbage recovery system, medical fee system, intelligent sorting, etc.

number of divisions

100000

Communication frequency

30HZ

accuracy

10000

sample frequency

10-40HZ

input voltage

12-24V/sy

protocol

MODBUS-RTU, self-defined protocol

excitation voltage

5V /3.3V

Communication parameter

Code extraction switch Settings

operating current

<60MA

Number of input sensors

1-4350 R weighing or pressure sensors

SJ101CX White Weight/force Module with box RS485 RS232 MODBUS-RTU 10-40HZ For Garbage Recovery System 12-24V 0
