WY8201 Blue Weighing Controller For Wheat Weighing Batching IP65 With A/D Chip DC24V 18-36V

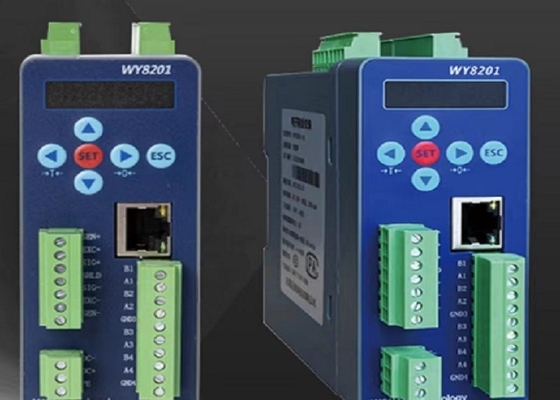

Large Image : WY8201 Blue Weighing Controller For Wheat Weighing Batching IP65 With A/D Chip DC24V 18-36V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	WY8201

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW HANGZHOU
Packaging Details:	Carton
Payment Terms:	T/T, Western Union
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:	DC24V (18-36V)	Power Consumption:	4W
Working Temperature:	-20℃~40℃	Relative Humidity:	Less Than 90% (no Condensate)
Input Signal:	-30mv----+30mv
Highlight:	Blue weighing controller , wheat batching Blue weighing controller , D chip Blue weighing controller

Blue Weighing controller widely used for wheat weighing batching with A/D chip DC24V (18-36V)

General specifications	Power supply	DC24V(18-36V)
	Power consumption	4W
	Working temperature	-20℃~40℃
	Relative humidity	Less than 90% (no condensate)
Weighing performance parameters	A/D chip	32-bit weighing A/D chip (Delta-Sigma)
	A/D Conversion speed	>1000times/sec(AD weighing speed)
	Display accuracy	1/1000000
	Maximum repetition accuracy	1/300000
	load cell drive current	>500mA
	Input signal	-30mv----+30mv
	Linearity	<5ppm(non-linear error)
	Capacity drift	<1ppm/℃
	Zero drift	<0. 005uv/℃
	Interference	<10nvRMS
Input terminal	12pcs 2500V isolated inputs (high active)
Output terminal	20pcs 2500V isolated output, supporting 6 channels of 100khz high-speed pulse output; Up to 24V, 1.5A drive capacity, with short circuit protection, over current protection
Serial communication	4-ways 2500V isolated RS485 communications, each up to 187500 baud rate, can be connected to four different types of equipment data interaction
Network port communication	8 threads, which can support simultaneous access of 8-way network devices
Analog input and output	2500V isolated 16 bit D/A, supporting 0-10V, 0-20mA and 4-20mA modes
Featured functions	It supports PLC programming function and internally integrates re inspection, flow, quantitative and other related algorithms.
