800kg IP67 Column Load Cell Aluminium Alloy

800kg IP67 Column Load Cell Aluminium Alloy
800kg IP67 Column Load Cell Aluminium Alloy 800kg IP67 Column Load Cell Aluminium Alloy

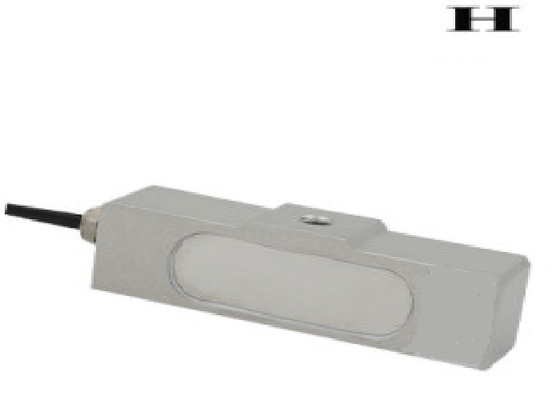

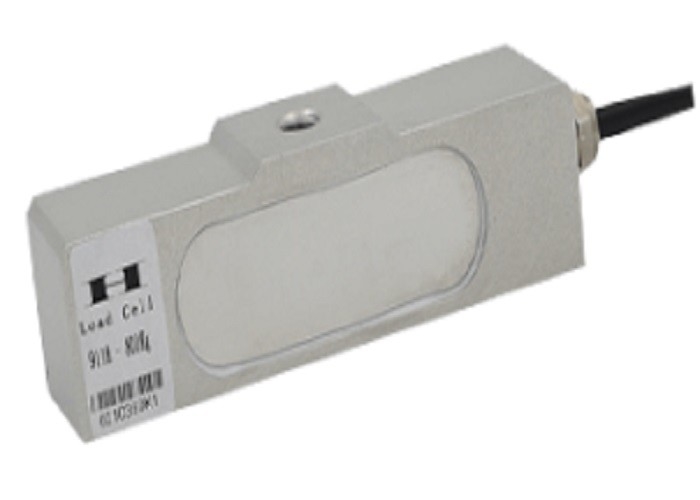

Large Image :  800kg IP67 Column Load Cell Aluminium Alloy

Product Details:

Place of Origin: China
Brand Name: Huazhun
Model Number: 911A-800kg

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD
Packaging Details: Cartons
Delivery Time: About 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Aluminium Alloy Capacity: 800kg
Output Sensitivity: 2.0±0.5% MV/V Zero Balance: ±0.02MV/V µv
Nominal Temperature Range: -10℃to40℃ NAME: Column Load Cell
High Light:

800kg Column Load Cell

,

IP67 Column Load Cell

,

Aluminium Alloy Column Load Cell

911A-800kg Aluminium alloy load cell for elevator



911A-800kg Aluminium alloy load cell for elevator weighing industry 2.0mv/V IP67





911A-800kg mainly be used in elevator, selling very well to many countries, could connect with USB or normal cable, if need, could equip with black base.

We also could laser logo as per your requirements.

If need, welcome to contact us and we provide our best solutions for you!



Emax Maximum capacity kg 800
Output Sensitivity 2.0±0.5% mV/V
Nonlinearity <±0.03 %FS
Hysteresis <±0.03 %FS
Repeatability <±0.03 %FS
Zero Balance ±0.02MV/V µv
Creep (2min) <0.05 %FS
Zero Temperature Coefficient <0.04 %FS/10
Rated Output Temperature Coefficient <0.04 %FS/10
Nominal Temperature Range -10to40 14Fto104F
Input Resistance 1000±30 Ω
Output Resistance 1000±5 Ω
Insulation Resistance 2000 MΩ
Safe Overload 150 %FS
Breaking Overload 300% of full scale
Compensated Temperature Range -10 ~ +40
Recommended Supply Voltage 5 ~ 12 V (DC/AC)
Construction Aluminum Alloy
Sealing Coated
Protection class IP67
4-Core shielded cable __2.5m~2.5mUSB Input Red (+) Black (-)
  Output Green (+) White (-)
  Shield Bare



DIMENSIONS
Rate Capacity L L1 L2 W H H1 T T1

Kg/mm

800

128 31 102 31 31 28.5 M10deep13 M8deep16

Lb/inches

1760

5.04 1.22 4.02 1.22 1.22 1.12 M10DP0.51 M8DP0.63

800kg IP67 Column Load Cell Aluminium Alloy 0
