INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

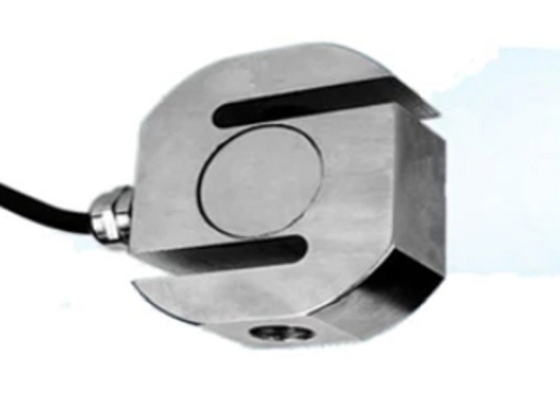

INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω

INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω
INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω

Large Image :  INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: INFS-028

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 100-20000KG/250lb-40klb Rated Output: 2.0/3.0±10%mV/V
Material: Alloy Steel/Stainless Steel Application: Hopper Scale
High Light:

Alloy Steel sensor Load Cell

,

compression sensor Load Cell

,

hopper scale sensor Load Cell

Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell



100KG-20T Tension S Type Mini Load Cell Alloy Steel Stainless Steel for riveting machine



Mainly applied in tension and compression testing instruments and automatic equipments fields,such as testing instruments, hopper scales, lifting hook scales, insertionforce test instruments, riveting machine, welding machine, and etc.





Load Cell Technical Parameter:



Capacity 100-20000KG Material Alloy steel
250lb-40klb Stainless Steel
Rated Output 2.0/3.0±10%mV/V Output Impedance
Zero Balance ±2%F.S. Insulation
Non-linearity 0.05%F.S. Recommended Excitation
Hysteresis 0.05%F.S. Maximum Excitation
Repeatability 0.05%F.S. Compensated Temp Range
(30)Creep (30min) 0.03%F.S. Operating Temp Range
Temp Effect on Output 0.03%F.S./10ºC Safe Load Limit
Temp Effect on Zero 0.03%F.S./10ºC Ultimate Load Limit
Input Impedance 385±10Ω Cable Size
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White





INFS-028 20T Alloy Steel S Type Tension And Compression Weight Sensor Load Cell For Hopper Scale 385±10Ω 0



Load Cell Dimension:

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-HZ-MS-008
