100kg Lamination Machine Miniature Inline Tension Load Cell Tension Compression Stainless Steel

100kg Lamination Machine Miniature Inline Tension Load Cell Tension Compression Stainless Steel
100kg Lamination Machine Miniature Inline Tension Load Cell Tension Compression Stainless Steel

Large Image :  100kg Lamination Machine Miniature Inline Tension Load Cell Tension Compression Stainless Steel

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: INFS-020

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 5~100kg Recommended Excitation: 2.5~5V
Material: Stainless Steel
High Light:

100kg inline tension load cell

,

Lamination Machine inline tension load cell

,

100kg miniature load cell tension compression

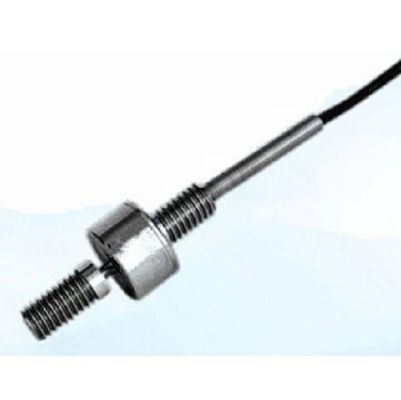

INFS-020 Screw Tension and Compression mini Load Cell



Screw Tension and Compression Stainless Steel mini Load Cell for lamination machine





INFS-020 Screw Tension and Compression Force Sencor Load Cell,Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.







Capacity 5-100kg Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0-5%F.S. Recommended Excitation 2.5-5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60
(30)Creep (30min) 0.1%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350±5Ω Cable Size φ(2-3)x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White





100kg Lamination Machine Miniature Inline Tension Load Cell Tension Compression Stainless Steel 0
