50kg Tension And Compression Load Cell 2.5-5V

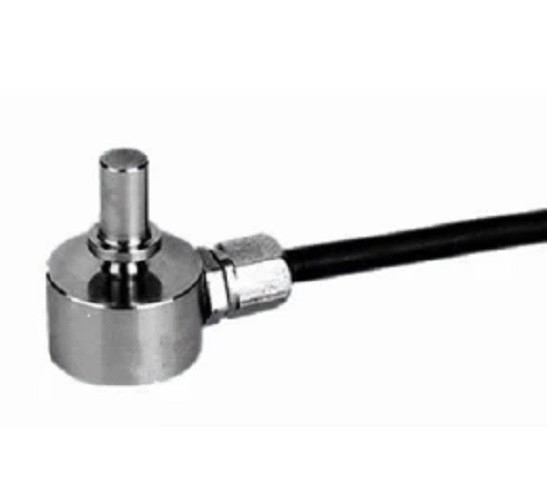

Large Image : 50kg Tension And Compression Load Cell 2.5-5V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	INFS-022

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

5~50kg

Recommended Excitation:

2.5~5V

Material:

Stainless Steel

Highlight:

Tension Compression Load Cell

50kg Compression Load Cell

5V Compression Load Cell

Screw Tension And Compression Force Sencor mini Load Cell

Screw Tension And Compression Force Sencor Stainless Steel mini Load Cell for robotic hands

INFS-022 Screw Tension and Compression Force Sencor Load Cell

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

50kg Tension And Compression Load Cell 2.5-5V 0

Capacity	5-50kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0-5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1 %F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350±5Ω	Cable Size	φ(2-3)x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
