INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine

Large Image : INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	INFS-035

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Type:

Mini Load Cell

Capacity:

200kg,500KG

Material:

Stainless Steel

Application:

Welding Machine

Highlight:

welding machine Compression Load Cell

weight sensor Compression Load Cell

500kg Compression Load Cell

INFS-035 Screw Tension And Compression Mini Load Cell

Screw Tension And Compression Stainless Steel Mini Load Cell for welding machine

Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force test instruments,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.

Rated capacities(Emax): 200kg,500KG

Recommended Excitation: 2.5-5V

Material: Stainless Steel

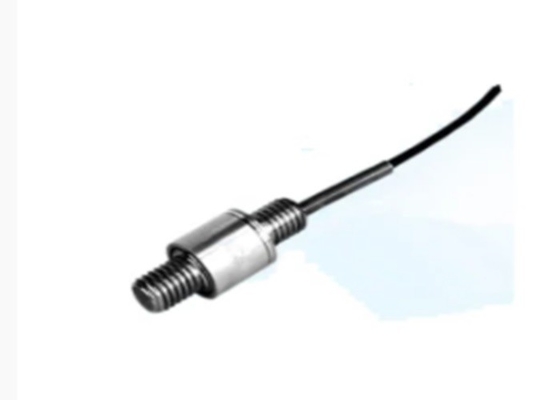

INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine 0

Capacity	200kg,500KG	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0-5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	- 20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350±5Ω	Cable Size	φ(2-3)x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
