INFS-030 Aluminum 200KG S type weighing Load Cell 2.0±10%mV/V Tension Compression weight force sensor For hopper scale 5-10V

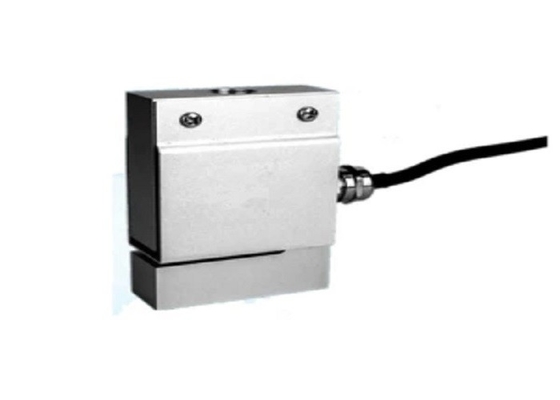

Large Image : INFS-030 Aluminum 200KG S type weighing Load Cell 2.0±10%mV/V Tension Compression weight force sensor For hopper scale 5-10V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	INFS-030

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

2-200KG

Recommended Excitation:

5-10V

Material:

Aluminum

Application:

Hopper Scale

Highlight:

200KG Aluminum Load Cell

hopper scale Aluminum Load Cell

Tension Compression Aluminum Load Cell

2-200KG Tension S Type Load Cell

Aluminum Tension S Type Mini Load Cell for hopper scales, lifting hook scales 5-10V

Detailed Product Description:

Mainly applied in tension and compression testing instruments and automatic equipments fields, such as testing instruments, hopper scales, lifting hook scales, tension test of steel wire rope, and etc.

INFS-030 Aluminum 200KG S type weighing Load Cell 2.0±10%mV/V Tension Compression weight force sensor For hopper scale 5-10V 0

Capacity	2-200KG	Material	Aluminum
Rated Output	2.0±10%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.05%F.S.	Recommended Excitation	5-10V
Hysteresis	0.05%F.S.	Maximum Excitation	15V
Repeatability	0.05%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.05%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.03%F.S./10ºC	Safe Load Limit	1.2
Temp Effect on Zero	0.03%F.S./10ºC	Ultimate Load Limit	1.5
Input Impedance	406±5Ω	Cable Size	φ4x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White +
