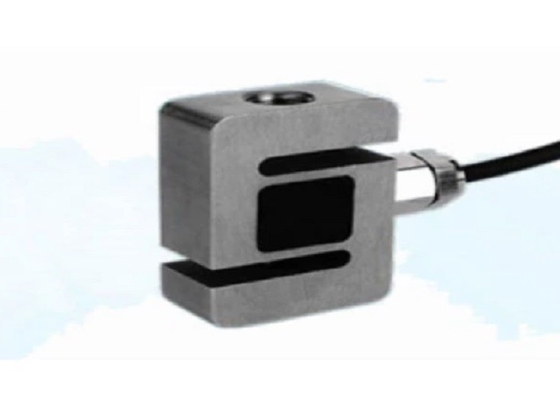

INFS-013 100kg S Type Stainless Steel Mini Force Load Cell 2.0±10%mV/V weight force sensor For Automatic Equipments 5-10V

Large Image : INFS-013 100kg S Type Stainless Steel Mini Force Load Cell 2.0±10%mV/V weight force sensor For Automatic Equipments 5-10V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	INFS-013

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

5-100KG

Recommended Excitation:

5-10V

Material:

Stainless Steel

Highlight:

Stainless Steel Mini Force Load Cell

100kg Mini Force Load Cell

Automatic Equipments Mini Force Load Cell

5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor

5-100KG Tension S Type mini Load Cell/Force Sensor 5-10V for automatic equipments

INFS-013 5-100KG Stainless Steel Tension S type Load Cell/Force Sensor

Detailed Product Description:

Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force test instruments, riveting machine,welding machine,hot & cold lamination machine, feeling tester for keyboard switch, and etc.

INFS-013 100kg S Type Stainless Steel Mini Force Load Cell 2.0±10%mV/V weight force sensor For Automatic Equipments 5-10V 0

Capacity	5-100KG	Material	Stainless Steel
Rated Output	2.0±10%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.05%F.S.	Recommended Excitation	5-10V
Hysteresis	0.05%F.S.	Maximum Excitation	15V
Repeatability	0.05%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.05%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.05%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.05%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	385±10Ω	Cable Size	φ3x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
