300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

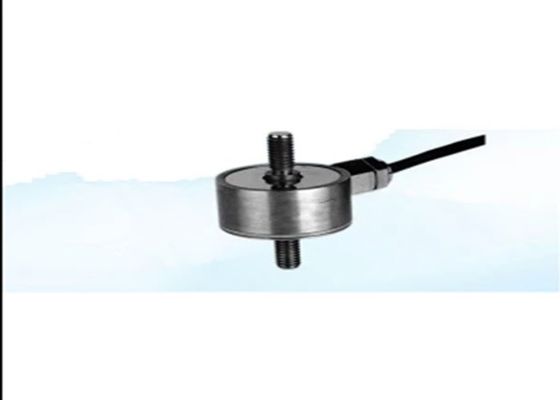

300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V

300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V
300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V

Large Image :  300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: INFS-034

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 1-100kg Recommended Excitation: 5-10V
Material: Aluminum/Stainless Steel
High Light:

100kg load cell weight sensor

,

Aluminum load cell weight sensor

,

100kg force sensitive resistor

Screw Tension And Compression Mini Load Cell for lamination machine





INFS-034 Screw Tension and Compression Mini Load Cell



1-100kg Aluminum/Stainless Steel Tension And Compression Mini Load Cell for lamination machine



Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force test instruments,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.

Recommended Excitation: 5-10V

Material: Aluminum/Stainless Steel



300kg Stainless Steel Mini Load Cell Tension And Compression for welding machine 5-10V 0



RANGE A B C D E F G H I J
1-3kg M3 0 8.5 8.5 7.5 31 0 10 4 5
5-50kg M5 6.6 11.5 12.5 10.5 37 1 10 13 9
60-100kg M6 6.6 11.5 12.5 10.5 37 1 10 13 9
Capacity 1-100kg Material /Aluminum/Stainless Steel
Rated Output 2.0±10%mV/V Output Impedance 700±5Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.1-0.5%F.S. Recommended Excitation 5-10V
Hysteresis 0.1-0.5%F.S. Maximum Excitation 15V
Repeatability 0.1-0.5%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 1.2
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 1.5
Input Impedance 700±5Ω Cable Size φ3x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig -
