Product Details:
Payment & Shipping Terms:
|
| Rated Capacities(Emax): | 5 ~ 100kg | Recommended Excitation: | 2.5-5V |
|---|---|---|---|
| Material: | Stainless Steel | ||
| High Light: | 5kg Tension And Compression Load Cell,0.1t Tension And Compression Load Cell,5V weight transmitter load cell |
||

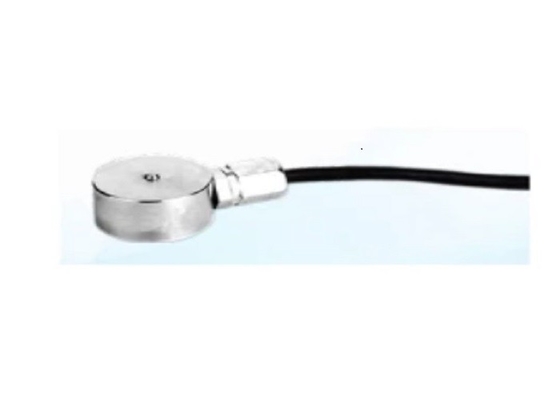

Mini Load Cell 5~100kg for tension and compression testing instruments Stainless Steel
INFS-010 Mini Force Sensor
Detailed Product Description:
Capacity: 5~100kg
Recommended Excitation: 2.5-5V
Material : Stainless Steel
| Capacity | 5~100kg | Material | Stainless Steel |
|---|---|---|---|
| Rated Output | 1.0-1.5mV/V | Output Impedance | 350(1000)±3Ω |
| Zero Balance | ±2%F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.5%F.S. | Recommended Excitation | 2.5-5V |
| Hysteresis | 0.5%F.S. | Maximum Excitation | 5V |
| Repeatability | 0.5%F.S. | Compensated Temp Range | -10~60ºC |
| Creep (30min) | 0.1%F.S. | Operating Temp Range | -20~80ºC |
| Temp Effect on Output | 0.1%F.S./10ºC | Safe Load Limit | 120% |
| Temp Effect on Zero | 0.1%F.S./10ºC | Ultimate Load Limit | 150% |
| Input Impedance | 350(1000)±5Ω | Cable Size | φ2x3m |
| Wire Connection | Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White | ||
