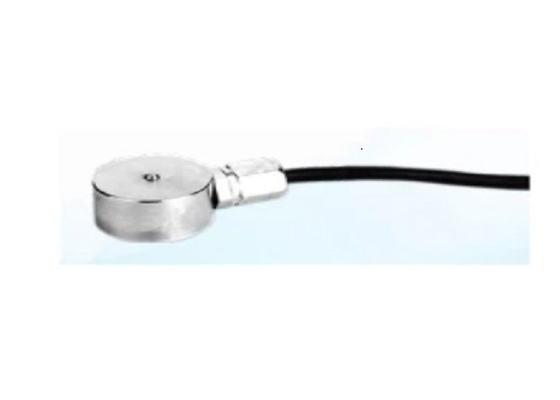

INFS-010 Mini 100kg Stainless Steel Tension And Compression weighing Load Cell micro Weight force sensor 2.5-5V

Large Image : INFS-010 Mini 100kg Stainless Steel Tension And Compression weighing Load Cell micro Weight force sensor 2.5-5V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	INFS-010

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

5 ~ 100kg

Recommended Excitation:

2.5-5V

Material:

Stainless Steel

Rated Output:

1.0-1.5mV/V

Highlight:

Tension And Compression Steel Load Cell

2.5-5V Steel Load Cell

100kg Steel Load Cell

INFS-010 Mini Force Sensor tension and compression

Mini Load Cell 5~100kg for tension and compression testing instruments Stainless Steel

INFS-010 Mini Force Sensor

Detailed Product Description:

Capacity: 5~100kg

Recommended Excitation: 2.5-5V

Material : Stainless Steel

INFS-010 Mini 100kg Stainless Steel Tension And Compression weighing Load Cell micro Weight force sensor 2.5-5V 0

INFS-010 Mini 100kg Stainless Steel Tension And Compression weighing Load Cell micro Weight force sensor 2.5-5V 1

INFS-010 Mini 100kg Stainless Steel Tension And Compression weighing Load Cell micro Weight force sensor 2.5-5V 2

Capacity	5~100kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350(1000)±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	0.5%F.S.	Maximum Excitation	5V
Repeatability	0.5%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350(1000)±5Ω	Cable Size	φ2x3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
