Home ProductsTension And Compression Load Cell

Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

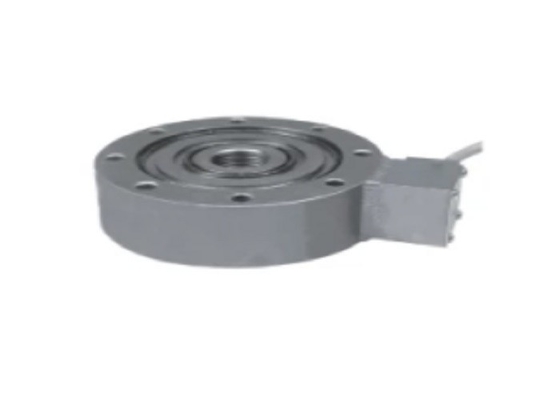

Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale

Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale
Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale

Large Image :  Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: 656A

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Alloy Steel Capacity: 1000kg To 300000kg
Accuracy Class: C1 Application: Hopper Scale
Output: 2.0mV/V
High Light:

300T Compression Load Cell

,

hopper scale Compression Load Cell

,

2.0mV/V Compression Load Cell

656A 1000kg To 300000kg Tension And Compresion Load Cell For Withstanding Extraneous Loads



Alloy Steel 656A Tension And Compresion Load Cell For Withstanding Extraneous Loads





Mainly applied intension and compression testing instruments and automatic equipments fields,such as testing instruments, hopper scales, lifting hook scales, insertionforce test instruments, riveting machine, welding machine, and etc.



Rated capacity (Emax) kg 1,000...300,000
Accuracy class   C1
Sensitivity mV/V 2.0± 1%
Zero balance mV/V 0.04
Creep over 30min % 0.05
Temperature effect on zero %/ 0.0023
Temperature effect on output %/ 0.0012
Hysteresis % 0.05
Linearity deviation % 0.05
Repeatability % 0.03
Nominal temperature range   -10 to +40
Service temperature range   -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 5~12
Max. excitation V 15
Input impedance   770± 30
Output impedance   700± 5
Insulation resistance M >2000
Cable length M 10
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code   +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht

Alloy Steel 656A 300T Tension Compression Load Cell weight sensor 2.0mV/V for hopper scale 0
