| Material: | Alloy Steel | Capacity: | 5,000~100,000KG |
|---|---|---|---|
| Accuracy Class: | 0.3 | ||
| High Light: | 2.5mV/V Tension And Compression Load Cell,Tension And Compression Load Cell 5000,Steel Load Cell 100000KG |
||

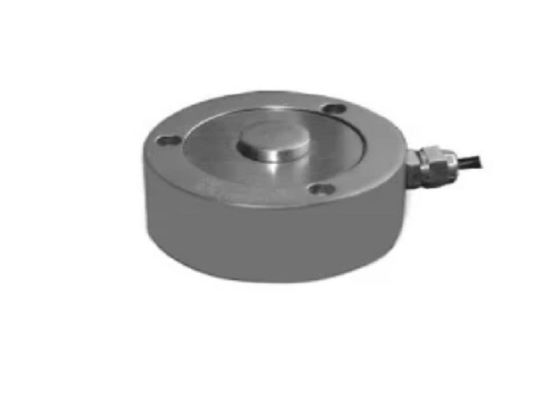

Alloy Steel 636A Tension And Compresion Load Cell 5,000~100,000KG For Motion Weighing
| Rated capacity (Emax) | kg | 5,000/10,000/25,000/50,000/100,000 |
| Accuracy class | 0.3 | |
| Sensitivity | mV/V | 2.5 ±10% |
| Zero balance | mV/V | 0.005 |
| Creep over 30min | % | 0.1 |
| Temperature effect on zero | %/ | 0.046 |
| Temperature effect on output | %/ | 0.016 |
| Hysteresis | % | 0.32 |
| Linearity deviation | % | 0.32 |
| Repeatability | % | 0.05 |
| Nominal temperature range | -10 to +40 | |
| Service temperature range | -30 to +70 | |
| Limit load | % of R.C. | 150 |
| Break load | % of R.C. | 300 |
| Nominal excitation | V | 5~12 |
| Max. excitation | V | 15 |
| Input impedance | 400 ±25 | |
| Output impedance | 350 ±3 | |
| Insulation resistance | M | >2000 |
| Cable length | M | 2 |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
| Color code | +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht |
