Home ProductsShear Beam Load Cell

693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

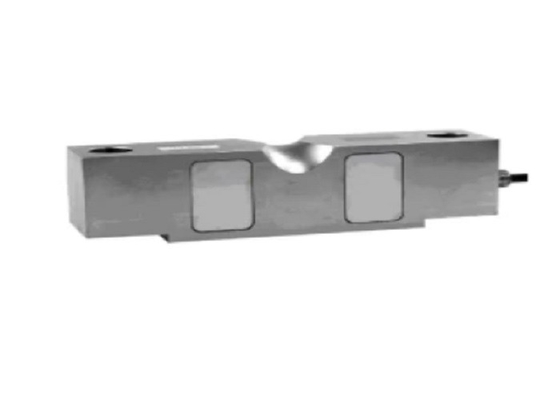

693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge

693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge
693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge

Large Image :  693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: 693B

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 25~200KLB Sensitivity: 3.0 ±0.003mV/V
Material: Alloy Steel,stainless Steel Available
High Light:

steel shear beam load cell mounting

,

shear beam load cell mounting 693B

,

parallel beam load cell 200KLB

693B 25~200KLB Double Shear Beam Load Cell



Alloy steel/Stainless steel 693B 25~200KLB Double Shear Beam Load Cell For Truck Scale


Mainly apply with weighbridge, suitable for truck scale,comply with OIML C3 standard,interchangeable with Vishay HBM,Mettler Toledo Load cell.

Good quality and long life with competitive price! Hot selling and could be customized.

If you have any weighing problem especially in packing industry, contact us, we are confident to provide you a suitable and economic Solution!





Rated capacity (Emax) Klb 25/40/50/60/75/100/125/150/200
Accuracy class   C3
Sensitivity mV/V 3.0 ±0.003
Zero balance mV/V 0.03
Creep over 30min % 0.02
Temperature effect on zero %/ 0.004
Temperature effect on output %/ 0.0014
Hysteresis % 0.017
Linearity deviation % 0.017
Repeatability % 0.017
Nominal temperature range   -10 to +40
Service temperature range   -30 to +65
Limit load % of R.C. 120
Break load % of R.C. 150
Nominal excitation V 5~12
Max. excitation V 18
Input impedance   700 ±7
Output impedance   703± 4
Insulation resistance M >5000
Cable length M 9
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code   +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht



693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge 0



693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge 1





693B Alloy Steel Parallel Shear Beam weight Load Cell Mounting 25KBL To 200KLB for weighbridge 2
