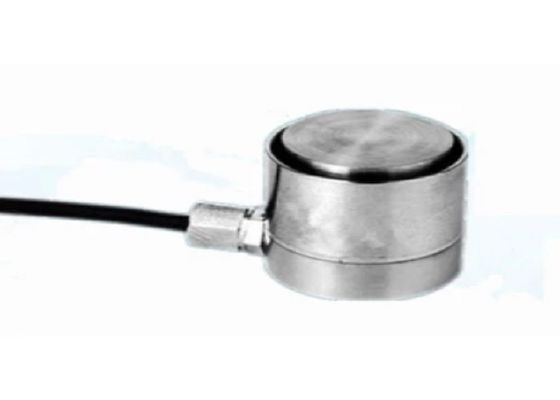

HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V

HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V
HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V

Large Image :  HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: HZFS-012

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 10KN~150KN Recommended Excitation: 5V
Material: Stainless Steel Output: 1.5-2.0mV/V
Application: Robotic Hand
High Light:

robotic hand Weight Load Cell

,

Stainless Steel Weight Load Cell

,

1.5-2.0mV/V Weight Load Cell

Mini Stainless Steel 10KN~150KN Force Sensor



Mini Stainless Steel 10KN~150KN Force Sensor Force measurement in small space installation



HZFS-012 Mini Stainless Steel 10KN~150KN Force Sensor

Detailed Product Description:

capacity: 10KN~150KN

Recommended Excitation: 5V

Material: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch,compression force measurement for hot and cold lamination machine,and grasping force measurement for robotic hands.



HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V 0



HZFS-012 150KN Truck Scale Weight Load Cell Stainless Steel sensor for robotic hand 1.5-2.0mV/V 1

Capacity 10KN~150KN Material Stainless Steel
Rated Output 1.5-2.0mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0%F.S. Recommended Excitation 5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60ºC
Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.05%F.S./10ºC Safe Load Limit 150%
Temp Effect on Zero 0.05%F.S./10ºC Ultimate Load Limit 200%
Input Impedance 385±5Ω Cable Size φ2 x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
