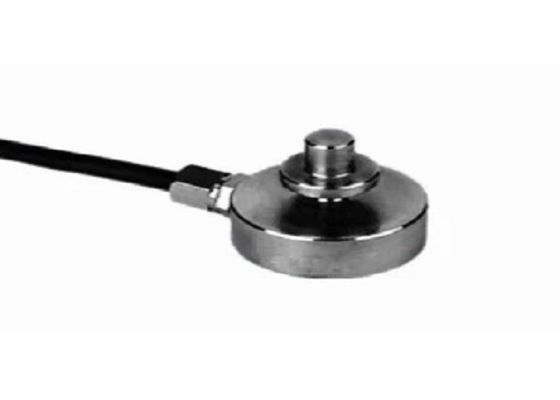

Load Cell HZFS-019 50kg 10V Screw Tension and Compression Stainless Steel Mini weight sensor for robotic hand

Load Cell HZFS-019 50kg 10V Screw Tension and Compression Stainless Steel Mini  weight sensor for robotic hand
Load Cell HZFS-019 50kg 10V Screw Tension and Compression Stainless Steel Mini  weight sensor for robotic hand

Large Image :  Load Cell HZFS-019 50kg 10V Screw Tension and Compression Stainless Steel Mini weight sensor for robotic hand

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: HZFS-019

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 5~50kg Recommended Excitation: 5-10V
Material: Stainless Steel
High Light:

10V Load Cell HZFS-019

,

robotic hand Load Cell HZFS-019

,

Screw Tension Load Cell HZFS-019

Stainless Steel 5~50kg Screw Tension And Compression mini Load cell



HZFS-019 Screw Tension and Compression Force Sencor Load Cell



Detailed Product Description





Capacity: 5~50kg

Recommended Excitation: 5-10V

Material: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.



Load Cell HZFS-019 50kg 10V Screw Tension and Compression Stainless Steel Mini  weight sensor for robotic hand 0



Load Cell Parameters:

Capacity 5-50kg Material Stainless Steel
Rated Output 1.0-1.5 mV/V Output Impedance 1000±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5%F.S. Recommended Excitation 5-10V
Hysteresis 0.5%F.S. Maximum Excitation 15V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 1000±5Ω Cable Size φ3x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
