10kg Stainless Steel Load Cell 5-10V

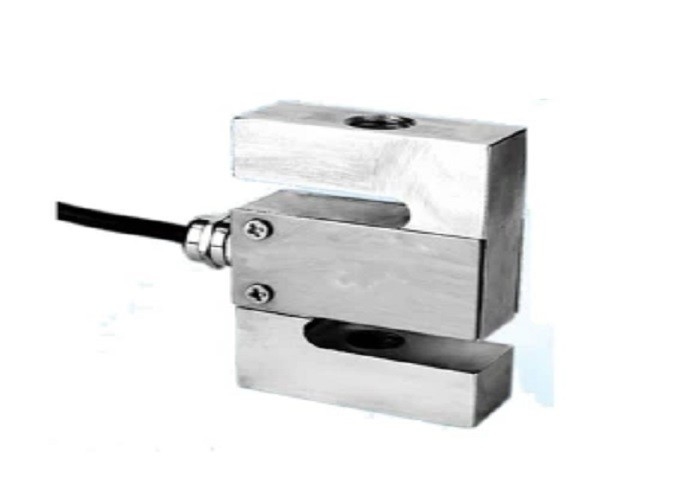

Large Image : 10kg Stainless Steel Load Cell 5-10V

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	HZFS-023

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

10-5000KG

Recommended Excitation:

5-10V

Material:

Alloy Steel/Stainless Steel

Highlight:

10kg Stainless Steel Load Cell

5-10V Stainless Steel Load Cell

Alloy Steel/Stainless Steel Tension S Type Mini Load Cell

10-5000KG Alloy Steel/Stainless Steel Tension S Type Load Cell in small space installation

HZFS-023 Alloy Steel/Stainless Steel Tension S Type Load Cell

Detailed Product Description:

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

Capacity: 10-5000KG

Recommended Excitation: 5-10V

Material: Alloy steel/Stainless Steel

10kg Stainless Steel Load Cell 5-10V 0

Capacity	10-5000KG	Material	Alloy steel/Stainless Steel
Rated Output	2.0/3.0±10%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.03%F.S.	Recommended Excitation	5-10V
Hysteresis	0.03%F.S.	Maximum Excitation	15V
Repeatability	0.03%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.03%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.025%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.025%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±5Ω	Cable Size	φ5x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
