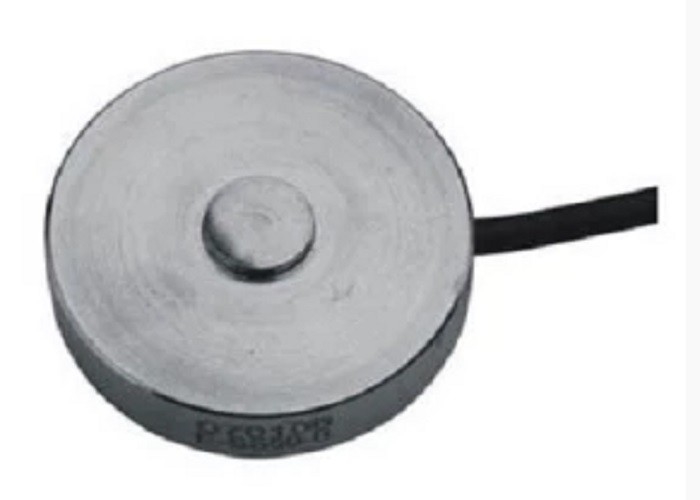

200lb 500lb Stainless Steel Load Cell

200lb 500lb Stainless Steel Load Cell
200lb 500lb Stainless Steel Load Cell

Large Image :  200lb 500lb Stainless Steel Load Cell

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: HZFS-026

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Capacities(Emax): 50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg Recommended Excitation: 10V DC
Material: Stainless Steel
High Light:

200lb Stainless Steel Load Cell

,

500lb Stainless Steel Load Cell

HZFS-026 Mini Load Cell



Stainless Steel Mini Load Cell Pressure Testing For Small Space with various capacities



Detailed Product Description



Rated capacities(Emax): 50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg

Recommended Excitation: 10V DC

Construction: Stainless Steel

Application: Pressure Testing For Small Space

Type: Micro Load Cell



200lb 500lb Stainless Steel Load Cell 0

200lb 500lb Stainless Steel Load Cell 1



Items UNIT TECHNICAL DATA
Rated capacities(Emax) lb, kg 50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg
Sensitivity mV/V 1.0±0.5
Total error F.S ±0.05%; ±1%(3~10klb)
Creep error(30min) F.S ±0.3%
Zero balance F.S ±1%
TCO F.S/℃ ±0.05% / 10
TC SPAN F.S/℃ ±0.05% / 10
Input impedance Ω 380±30
Output impedance Ω 350±5(2~10klb); 352±3(50klb~1klb)
Insulation impedance ≥5000
Temperature range, operating -30~ +70
Maximum safe overload F.S 100%
Ultimate overload F.S 120%
Excitation, recommend V 10V DC
Excitation, maximum V 10V DC
Protection class   IP67
Construction   Stainless Steel
Cable m Length: 1.5
mm Diameter: φ3
Wiring   Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)
  •
