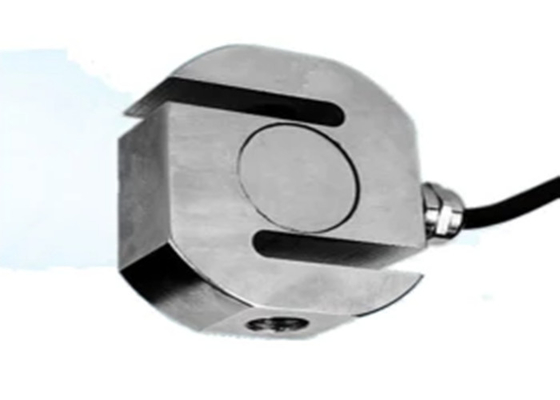

HZFS-028 20T Mini Alloy Steel S Type weighing Compression Load Cell weight force sensor For Riveting Machine hopper scale

Name: HZFS-028 20T Mini Alloy Steel S Type weighing Compression Load Cell weight force sensor For Riveting Machine hopper scale
Brand: Innovation
SKU: HZFS-028
Rating: 4.6 (155 reviews)

Large Image : HZFS-028 20T Mini Alloy Steel S Type weighing Compression Load Cell weight force sensor For Riveting Machine hopper scale

Product Details:

Place of Origin:	China
Brand Name:	Innovation
Model Number:	HZFS-028

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	carton
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Rated Capacities(Emax):

100-20000KG/250lb-40klb

Rated Output:

2.0/3.0±10%mV/V

Material:

Alloy Steel/Stainless Steel

Appearance:

S Type

Highlight:

20T Compression Load Cell

Alloy Steel Compression Load Cell

Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell

Alloy Steel Stainless Steel 100KG-20T Tension S Type Mini Load Cell for riveting machine

Detailed Product Description

Mainly applied intension and compression testing instruments and automatic equipments fields,such as testing instruments, hopper scales, lifting hook scales, insertionforce test instruments, riveting machine, welding machine, and etc.

Capacity: 50KG-10T

Recommended Excitation: 5-10V

Material: Alloy steel/Stainless Steel

HZFS-028 20T Mini Alloy Steel S Type weighing Compression Load Cell weight force sensor For Riveting Machine hopper scale 0

Load Cell Dimension:

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-HZ-MS-008

Load Cell Technical Parameter:

Capacity	100-20000KG	Material
250lb-40klb	Stainless Steel
Rated Output	2.0/3.0±10%mV/V	Output Impedance
Zero Balance	±2%F.S.	Insulation
Non-linearity	0.05%F.S.	Recommended Excitation
Hysteresis	0.05%F.S.	Maximum Excitation
Repeatability	0.05%F.S.	Compensated Temp Range
(30)Creep (30min)	0.03%F.S.	Operating Temp Range
Temp Effect on Output	0.03%F.S./10ºC	Safe Load Limit
Temp Effect on Zero	0.03%F.S./10ºC	Ultimate Load Limit
Input Impedance	385±10Ω	Cable Size
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
