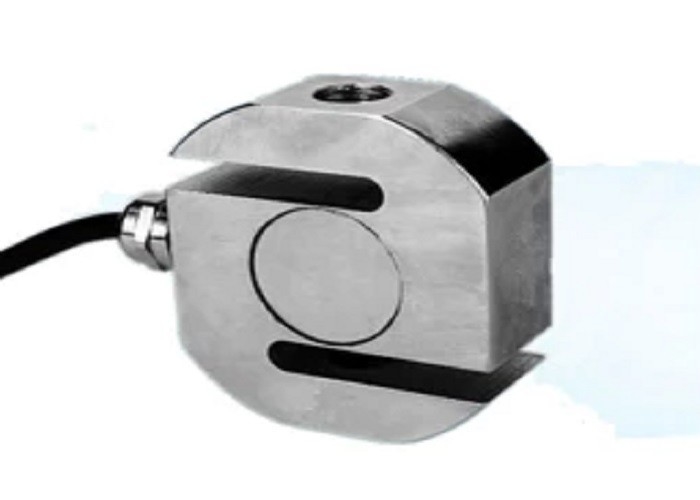

Alloy Steel Stainless Steel 50KG-10T Tension S Type Mini Load Cell for riveting machine
Detailed Product Description
Mainly applied intension and compression testing instruments and automatic equipments fields,such as testing instruments, hopper scales, lifting hook scales, insertionforce test instruments, riveting machine, welding machine, and etc.
Capacity: 50KG-10T
Recommended Excitation: 5-10V
Material: Alloy steel/Stainless Steel
Load Cell Dimensions:
Load Cell Technical Parameter:
| Capacity | 50KG-10T | Material | /Alloy steel/Stainless Steel |
|---|---|---|---|
| Rated Output | 2.0±5%mV/V | Output Impedance | 350±3Ω |
| Zero Balance | ±2%F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.03%F.S. | Recommended Excitation | 5-10V |
| Hysteresis | 0.03%F.S. | Maximum Excitation | 15V |
| Repeatability | 0.03%F.S. | Compensated Temp Range | -10~60ºC |
| (30)Creep (30min) | 0.03%F.S. | Operating Temp Range | -20~80ºC |
| Temp Effect on Output | 0.025%F.S./10ºC | Safe Load Limit | 150% |
| Temp Effect on Zero | 0.025%F.S./10ºC | Ultimate Load Limit | 200% |
| Input Impedance | 385±20Ω | Cable Size | φ5x 3m |
| Wire Connection | Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White | ||
