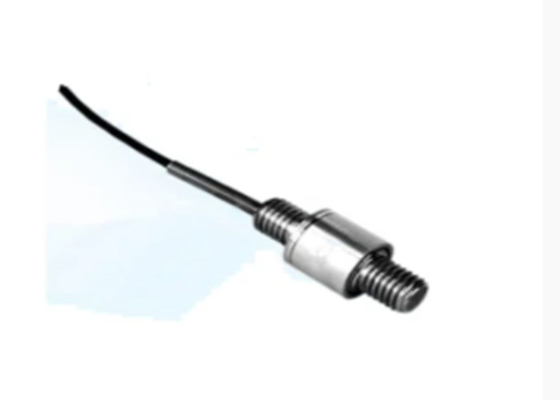

200kg Miniature Tension Stainless Steel Load Cell 1.0mV/V 1.5mV/V For Welding Machine

200kg Miniature Tension Stainless Steel Load Cell 1.0mV/V 1.5mV/V For Welding Machine
200kg Miniature Tension Stainless Steel Load Cell 1.0mV/V 1.5mV/V For Welding Machine

Large Image :  200kg Miniature Tension Stainless Steel Load Cell 1.0mV/V 1.5mV/V For Welding Machine

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: HZFS-035

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Type: Mini Load Cell Capacity: 200kg,500KG
Material: Stainless Steel Product Name: Stainless Steel Load Cell
High Light:

200kg Stainless Steel Load Cell

,

Stainless Steel Load Cell 1.0mV/V

,

miniature tension load cell 1.5mV/V

HZFS-035 Screw Tension And Compression Mini Load Cell



HZFS-035 Screw Tension And Compression 200kg 1.0-1.5mV/V Mini Load Cell for welding machine



Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force test instruments,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.

Rated capacities(Emax): 200kg,500KG

Recommended Excitation: 2.5-5V

Material: Stainless Steel



200kg Miniature Tension Stainless Steel Load Cell 1.0mV/V 1.5mV/V For Welding Machine 0



Capacity 200kg,500KG Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0-5%F.S. Recommended Excitation 2.5-5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.1%F.S. Operating Temp Range - 20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350±5Ω Cable Size φ(2-3)x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
