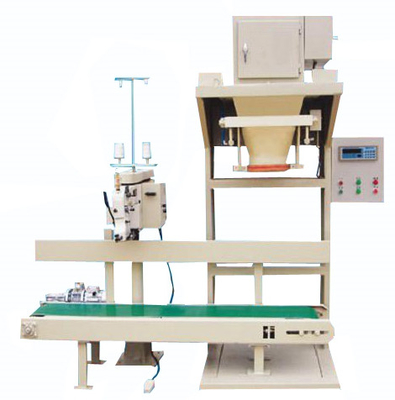

YTDK—M—1 Granule Packing Soybean Meal Industry Conveyor Scale IP66 Rollers 300 Bags/Hour 0.2％for soybean meal

Large Image : YTDK—M—1 Granule Packing Soybean Meal Industry Conveyor Scale IP66 Rollers 300 Bags/Hour 0.2％for soybean meal

Product Details:

Place of Origin:	China
Brand Name:	innovation
Model Number:	YTDK—M—1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Speed:	300 Bags/Hour	Application:	Soybean
Accuracy:	0.2％	Power Supply:	AC380V/50Hz/±10%
Power Consumption (about):	1.1kW/hour
Highlight:	soybean meal conveyor scale , 300 bag/hour meal conveyor scale , 300bag/h industrial conveyor rollers

It is widely used for automatic quantitative packing of all kinds of granular materials

For example: soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials and other kinds of granular materials measurement packaging

One, the special points

· Parts in contact with materials are made of stainless steel, with strong corrosion resistance, high health standards and long service life of the equipment.

· Unique feeder design, dual cylinder drive, adjustable feeding door to adapt to different material changes, ensuring high speed and high precision requirements.

· Easy to clean and maintain, low failure rate of transmission parts.

· Direct bag weighing, suitable for light specific weight, heavy weight rapid measurement and packaging.

·20 kinds of different packaging weights are pre-stored, which can meet the requirements of a variety of measurement packaging and make it easy to call out the formula.

· Select high-quality imported and domestically made electrical and pneumatic components to ensure stable and reliable operation of the equipment.

· Dust cover and dust removal device can be added according to the characteristics of materials.

Ii. Main technical parameters

Model	Packing weight(Kg)	Packing speed bag/hour	precision	Installation dimensions (mm) Length × width × height (including conveyor)	Machine weight(Kg)
YTD60K—M—1	20 ～ 60	300～350	0.2％	3000×800×2000	500
YTD25K—M—1	5 ～ 25	300～350	0.2％	2800×800×2000	500

·The packing precision and speed depend on the material characteristic　　·Power SupplyAC380V/50Hz/±10%
·Power consumption (about) 1.1kW/hour　　　　　　· Air source (compressed air) 0.5mpa
