Use our Machine To Make Your Weighing and Packing Line Easier, Faster and More Cost Saving!
Payment & Shipping Terms:
|Capacity(Double Pads For One Axel):||20000/30000/40000Kg||Description(Each Pad):||10000/15000/20000Kg|
|Input Signal Range:||－3mV～15mV||Load Cell Excitation:||DC 5V|
|Max. Connection Number Of Load Cell:||4 At 350 Ohm|
40000kg mobile truck weigh scales,
30000kg portable truck scales,
15mV Portable Vehicle Scales

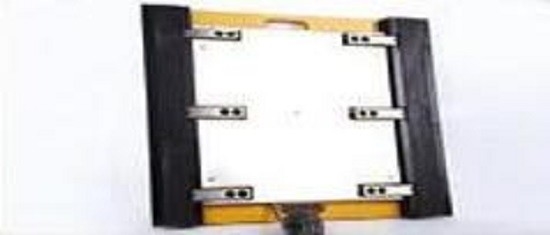

INPT-S001-B series S001-BIG wireless portable truck scale
Wireless 20000/30000/40000kg Portable Truck Scales
Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Outline Dimension (mm):
(Double Pads for One Axel)
Special Features :
● Adopts ∑-Δ A/D conversion technology.
● Keyboard calibration, easy to operate.
● Able to setup zero(auto/manual) range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, packed in portable box, easy to operate outdoor.
● Adopt SMT technology, reliable and high quality.
● LCD display with dot character with backlight, readable in aphotic areas.
● Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
● Standard parallel print interface(EPSON printer)
● With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
|A/D Conversion Method:||Σ-Δ|
|Input Signal Range:||－3mV～15mV|
|Load Cell Excitation:||DC 5V|
|Max. Connection Number Of Load Cell:||4 at 350 ohm|
|Load Cell Connection Mode:||4 wire|
|Max. External Counts:||15000|
|Display:||LCD display with backlight|
|Clock:||real clock without effect on power off|
|Wireless Transmission Frequency:||450MHz|
|Wireless Transmission Distance:||200 meters (in wide place)|
|Option:||RS232 communication interface|
