INPT-S001-S Portable wireless Aluminum-alloy dynamic Truck Scales with indicator 10-30T axle Vehicle Weighing 1.0±0.1mV/V IP66

Large Image : INPT-S001-S Portable wireless Aluminum-alloy dynamic Truck Scales with indicator 10-30T axle Vehicle Weighing 1.0±0.1mV/V IP66

Product Details:

Place of Origin:	China
Brand Name:	Inntronic
Model Number:	INPT-S001-S

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Payment Terms:	T/T

Contact Now

Detailed Product Description

Model:	S001	Size(A×B×C):	450×700×56.5
Capacity(Double Pads For One Axel):	10000/20000/30000Kg	Description(Each Pad):	5000/10000/15000Kg
Rated Load::	1/2/3/5/6/10/20/30T	Dynamic Error (%F.S):	3 (5~10km/h)
Highlight:	3km/h Portable Truck Scales , 30000Kg Portable Truck Scales , portable vehicle weighing scales IP66

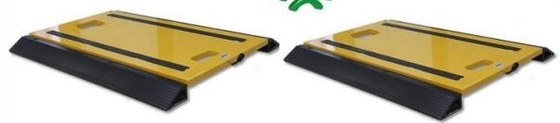

INPT-S001-S S001 wireless portable truck scale

30000Kg 3km/H Portable Vehicle Weighing Scales

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

Outline Dimension (mm):

Configuration Table:

Model

Size(A×B×C)

(mm)

Capacity

(Double Pads for One Axel)

Description(Each Pad)

S001

450×700×56.5

10000/20000/30000Kg

Capacity:5000/10000/15000Kg

Product Parameters
Rated load:1/2/3/5/6/10/20/30T	Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)	Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5	Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1	Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2	Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2	Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05	Safe overload(%): 120
Zero balance(%F.S): ±1	Ultimate overload(%): 150
Excitation voltage(VDC): 9~15	Net weight(kg): 45
Recommended voltage(V): 10	Defend grade: IP66

Wireless Specification
A/D conversion method	Σ-Δ 24bit
Input signal range	–19.5mV~19.5mV
Load cell excitation	DC 5V
Max. connection number of load cell	1~4
Load cell connection mode	4 wire
Operating temperature	-10 °C ~40 °C
Allowable working temperature	-40 ° C ~ 70 ° C
Wireless transmission frequency	430MHz to 470MHz
Wireless transmission distance	800 meters (In Open Place)
