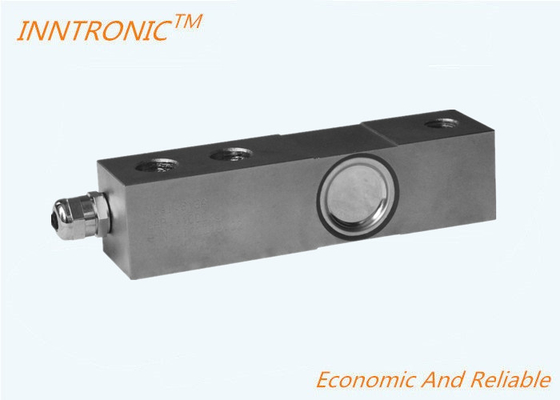

Load Cell IN-3411 500kg Alloy steel 10t Silo Scale Weight Module single ended Shear Beam force sensor IP67

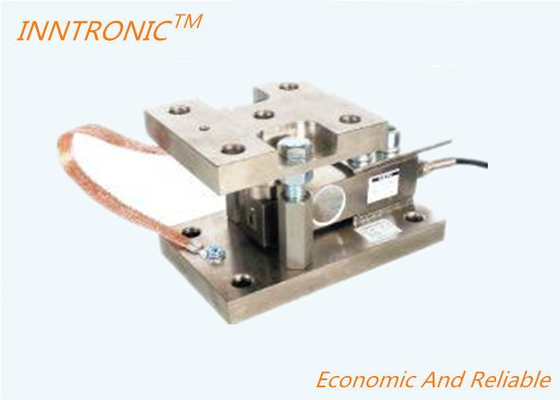

shear beam Weigh module for silo scale or hopper scale

 1t,2t,3t,5t,10t, made by shearbeam load cell, high precision up to NTEP1: 5000

Advantages of weigh module for silo scale and hopper scale:

1.Welded or glue sealed load cell

2.Round connection, always keep vertical weigh

3.Supporting bolts, prevent dumping and easy to repair

4.Grounding equipment, protect the load cell from

Surge impact

5.Overload protection, prevent overload of load cell.

PARAMETER	UNIT	TECHNICAL DATA
Rated capacity (Emax)	kg	100/200/300/500/1000/2000/2500/4000/5000/10,000/15,000/20,000
Accuracy class		C3
Sensitivity	mV/V	3.0+- 0.25%
Zero balance	mV/V	0.02
Creep over 30min	%	0.02
Temperature effect on zero	%/	0.0040
Temperature effect on output	%/	0.0014
Hysteresis	%	0.017
Linearity deviation	%	0.017
Repeatability	%	0.017
Nominal temperature range		-10 to +40
Service temperature range		-30 to +70
Limit load	% of R.C.	150
Break load	% of R.C.	200
Nominal excitation	V	5~12
Max. excitation	V	15
Input impedance		380 +-25
Output impedance		350+- 5
Insulation resistance	M	>2000
Cable length	M	2
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code		+Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
Construction		Alloy steel, stainless steel available
Protection class to IEC529		IP 67, IP68 available

Installation:

Available Weighing controller for silo sclae: High precision, to make 2t sclae with 2kg weight to calibrate.

IN-420 Weighing Indicator Controller for batching scale silo scale

Interchangeable With ATRAX 420 PLUS INDICATOR

• RS485/RS232 signal output with Modbus rtu available
• 2 RELAYS(Optional)
• Free PC software with programable for all function

Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)

Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.

With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

• COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
• COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
• Material: Stainless steel SS304
• IP Rating: IP66
• LED 6-digit display
• Power Supply: AC adaptor, 100-240VAC, 50-60Hz
• Parameter and calibration settings are performed on the front panel
• LABRADOR computer software for parameter and calibration settings
• Units of Measurement: kg, lb
• Improper operation and fault indication
• Two way relay signal output
• Equipped with RS-232 and RS-485 connecting ports
• Print functions with programmable print format
• Built-in clock

Weight Controlloer Data
