Innovation Electronic Co.,Ltd
Use our Machine To Make Your Weighing and Packing Line Easier, Faster and More Cost Saving!
Product Details:
Payment & Shipping Terms:
|
| Model: | DC506 | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Max Input Power: | 120 W | Output Voltage: | 60 KV |
| Max Output Current: | 2.5mA | Max Output Power: | 150 W |
| High Light: | 150W Static Charging Equipment,2.5mA Static Charging Equipment,electrostatic charge generator 60 KV |
||

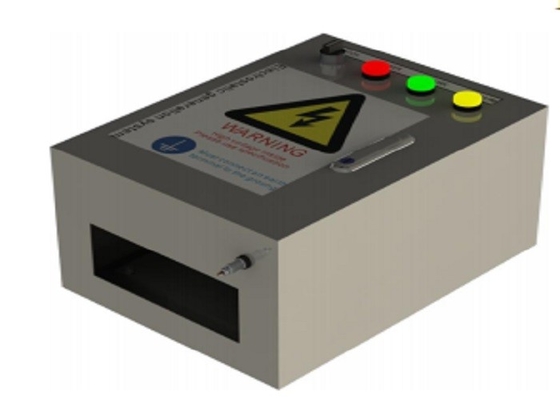

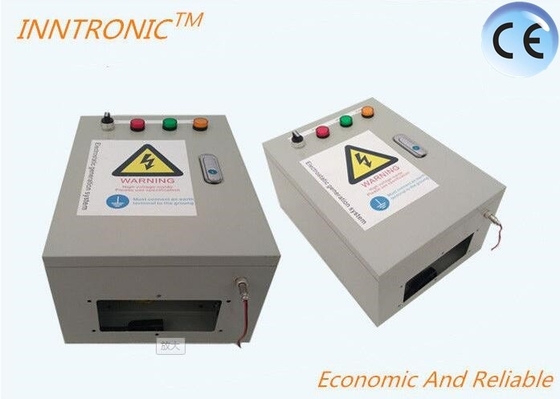

100V~240VAC DC506 (Case type) 60KV Charging Generator static application equipment
DC506 60 KV Static Charging Generator For Biological Engineering Fields 150W*2.5mA
1. Introduce
DC506 case type charging generator is a kind of static application equipment. The static charging generator is composed of a static emitter (bar) and a DC high voltage power supply. For DC high voltage power supply, provide plasma launcher(bar) of negative (or positive) high voltage,to emit negative ions (or positive ions) and then add electronic charge(artificial charge) on an object (workpiece). The higher the voltage, the greater the effective range. It is widely used in non-woven fabric, film, painting, printing, flocking, sorting and biological engineering fields. It have many advantages like simple installation, fire protection, no electric shock and stable work.
3. Applications:
Inmold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles.
2. Technical parameters:
| Input Voltage | 100V～240VAC |
| Max Input Power | 120 W |
| Output Voltage | 60 KV |
| Max Output Current | 2.5mA |
| Max Output Power | 150 W |
| Output Polarity | 1pc 60kv+ or 1pc 60kv- |
| Working Temperature | -15℃～60℃ |
| Output Stability | Max Load 1％ |
| Output connector | 60kv*1 or 60kv*2 |
| Voltage control | Stepless pressure regulation |
| Remote control | Support signal line remote switch control |
| Weight | 7 kg |
| Size | 400*300*200mm |
