| Pattern: | DC503 | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Max Input Power: | 120 W | Output Voltage: | 30 KV |
| Max Output Current: | 5mA | Max Output Power: | 150 W |
| High Light: | White 30kv Static Charging Equipment,Static Charging Equipment 5mA,electrostatic charge generator 150 W |
||

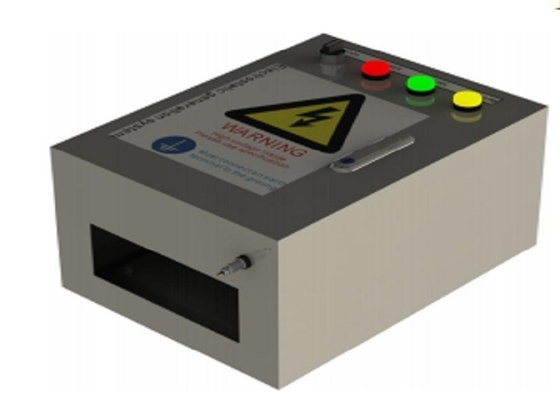

DC503 (Case type) 30KV Charging Generator For DC high voltage power supply 100V～240VAC

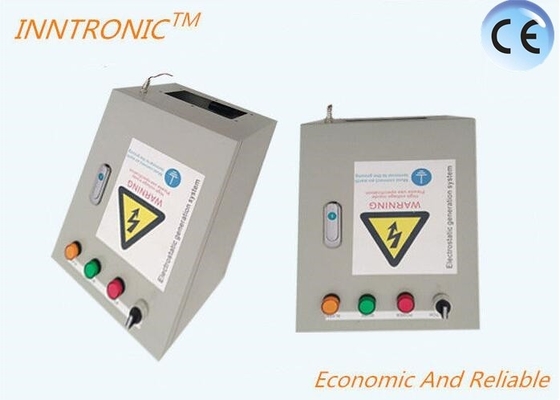

White DC503 30KV Electrostatic Charging Generator for Bag making on roll 5mA* 150 W
DC503 case type charging generator is a kind of static application equipment. The static charging generator is composed of a static emitter (bar) and a DC high voltage power supply. For DC high voltage power supply, provide plasma launcher(bar) of negative (or positive) high voltage,to emit negative ions (or positive ions) and then add electronic charge(artificial charge) on an object (workpiece). The higher the voltage, the greater the effective range. It is widely used in non-woven fabric, film, painting, printing, flocking, sorting and biological engineering fields. It have many advantages like simple installation, fire protection, no electric shock and stable work.1. Introduce
3.Applications:
Inmold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles.
2. Technical parameters:
| Input Voltage | 100V～240VAC |
| Max Input Power | 120 W |
| Output Voltage | 30 KV |
| Max Output Current | 5mA |
| Max Output Power | 150 W |
| Output Polarity | 1pc 30kv+ or 1pc 30kv- |
| Working Temperature | -15℃～60℃ |
| Output Stability | Max Load 1％ |
| Output connector | 30kv*1 or 30kv*2 |
| Voltage control | Stepless pressure regulation |
| Remote control | Support signal line remote switch control |
| Weight | 7 kg |
| Size | 400*300*200mm |
