Use our Machine To Make Your Weighing and Packing Line Easier, Faster and More Cost Saving!
Payment & Shipping Terms:
|Weighing Range:||0g-100g||Maximum Precision:||0.04g|
|Display Precision:||0.01g||Maximum Sorting Speed:||300p/min|
100g 0.01g Check Weigher Machine,
Check Weigher Machine USB Interface,
inline check weighing scales 300p/min

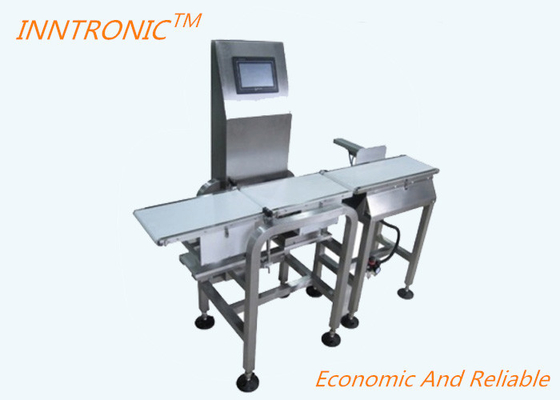

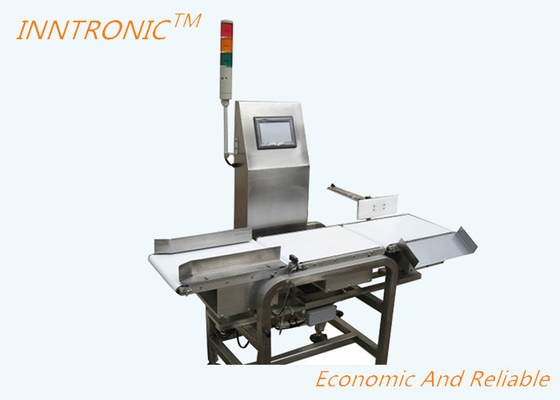

INCW-100 Biscuit overweight elimination separator on line Check weigher 100g 0.01g
USB Interface Check Weigher Machine Reinforced Stainless Steel Frame
The speed unit of the production line of the front section of the basic principle enters the weighing unit through the direct and speed increase to make the product enter the weighing unit neatly and equidistant, and when the photoelectric switch is located at the front of the weighing unit, the equipment begins to automatically weigh the product. At the same time, the machine is compared with the original standard weight value and the upper and lower limit values, and the qualified products and overweight and heavy products are automatically sorted out.
1. pipeline weighing detection: 1) overweight / under weight testing; 2) missing parts inspection; 3) attachment missing detection.
2. assembly line weighing and sorting: 1) multistage weight sorting; 2) unqualified products sorting; 3) substandard products.
3 . weighing machine combination application: provide weighing machine and metal detection, automatic spray code, automatic scanning automatic sealing equipment integration equipment.
4. customization: according to the actual needs of enterprise users and the characteristics of the production environment, we provide professional customized solutions and equipment.
Parameters of INCW-450 Series check weigher
|Maximum sorting speed||300p/min|
|The elimination mode||air blow type||air blow type, push rod type, lever type and downward type.|
|operation interface||color LED touch screen|
|External interface||USB interface (for storing data, optional), RS232 (optional), TCP/IP (optional)|
|equipped with||metal detectors, inkjet printer, labeling machine, printer, etc.|
|External gas source||0.6-1MPA|
|Pressure interface||Φ 8mm|
|Machine structure material||stainless steel (SUS304)|
1. the attributes and environment of the tested products are different, and the actual detection speed and accuracy are also different.
|2.of the machine specifications are standard, other sizes and special requirements can be customized.|
