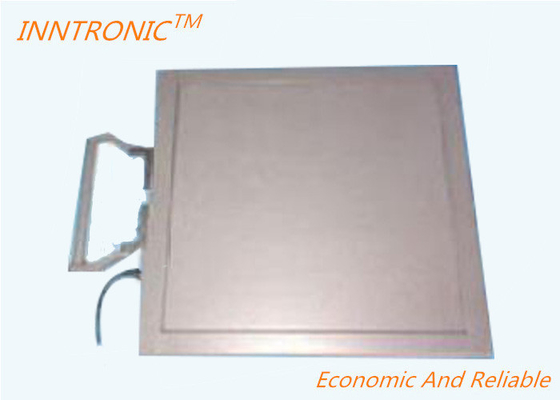

IN-100-500kg Aluminum Alloy Portable Truck Scale weight pad 0.3%FS Axle Car Weight Scale IP66 For Measure weighing

Large Image : IN-100-500kg Aluminum Alloy Portable Truck Scale weight pad 0.3%FS Axle Car Weight Scale IP66 For Measure weighing

Product Details:

Place of Origin:	china
Brand Name:	inntronic
Model Number:	IN-100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Pattern:	IN-100	Rated Load:	500kg
Static Comprehensive Error(%F.S):	0.1-0.3	Rated Output(mV/V):	0.40±0.1
Non-linearity(%F.S):	0.2	Error On Corners(%F.S):	0.2
Highlight:	Aluminum Alloy Portable Truck Scales , 0.3FS Portable Truck Scales , 500kg portable axle weigh scales

IN-100 500kg Vehicle Wheel&Axle Scale Weighing Pad For Measure Axle Weight

Aluminum Alloy Portable Truck Axle Scales 500kg Suiting Different Environment

Special features :

Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pads are connected together.

IN-100 Vehicle Wheel&Axle scale Weighing Pad PARAMETERS:

Rated load: 500kg
Static comprehensive error(%F.S): 0.1-0.3
Rated output(mV/V): 0.40±0.1	Insulation resistance(MΩ): ≥5000(100VDC)
Non-linearity(%F.S): 0.2	Compensated temp.range(℃): -10~+50
Error on corners(%F.S): 0.2	Use temp.range(℃): -30~+80
Repeatariy(%F.S): 0.05	Temp.effect on zero(F.S/10℃): 0.03
Zero balance(%F.S): ±1	Temp.effect on span(F.S/10℃): 0.05
Excitation voltage(VDC): 9~15	Safe overload(%): 120
Recommended voltage(V): 10	Ultimate overload(%): 150
Defend grade: IP66	Netweight(kg): 2
