Product Details:
Payment & Shipping Terms:
|
Pattern: | IN-100A | Rated Load: | 500kg |
---|---|---|---|
Static Comprehensive Error(%F.S): | 0.1-0.3 | Rated Output(mV/V): | 0.40±0.1 |
Non-linearity(%F.S): | 0.2 | Error On Corners(%F.S): | 0.2 |
High Light: | 500kg portable weight scale for trucks,portable weight scale for trucks,Low Profile axle scales portable 100 VDC |

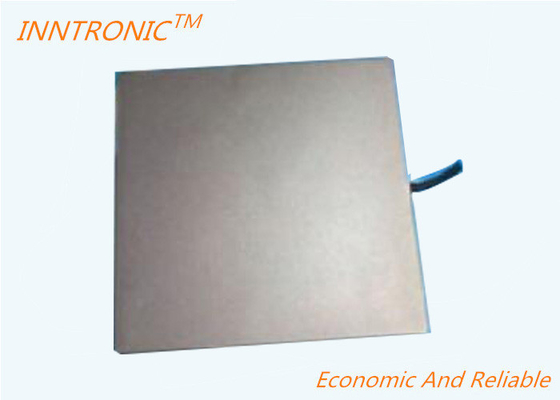

IN-100A 500kg Vehicle Wheel Axle Scale Weighing Pad For Measure Axle Weight
Low Profile Portable Truck Scales , Easy Operation Vehicle Weighing Pads
Vehicle Wheel&Axle scale Weighing Pad Special features :
Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pads are connected together
Vehicle Wheel&Axle scale Weighing Pad PARAMETERS:
Rated load: 500kg | |
Static comprehensive error(%F.S): 0.1-0.3 | |
Rated output(mV/V): 0.40±0.1 | Insulation resistance(MΩ): ≥5000(100VDC) |
Non-linearity(%F.S): 0.2 | Compensated temp.range(ºC): -10~+50 |
Error on corners(%F.S): 0.2 | Use temp.range(ºC): -30~+80 |
Repeatariy(%F.S): 0.05 | Temp.effect on zero(F.S/10ºC): 0.03 |
Zero balance(%F.S): ±1 | Temp.effect on span(F.S/10ºC): 0.05 |
Excitation voltage(VDC): 9~15 | Safe overload(%): 120 |
Recommended voltage(V): 10 | Ultimate overload(%): 150 |
Defend grade: IP66 | Netweight(kg): 2 |
Vehicle Wheel&Axle scale Weighing Pad DIMENSIONS(mm):
