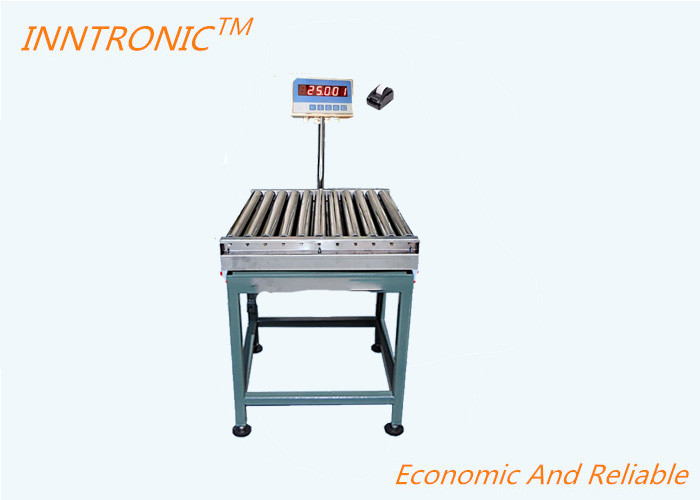

SS304 150kg Roller Conveyor Scale

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

SS304 150kg Roller Conveyor Scale

SS304 150kg Roller Conveyor Scale
SS304 150kg Roller Conveyor Scale SS304 150kg Roller Conveyor Scale SS304 150kg Roller Conveyor Scale

Large Image :  SS304 150kg Roller Conveyor Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: RC6060-IN420

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Model: RC6060-IN420 Enclosure Material: Stainless Steel SS304
Units Of Measurement: Kg, Lb Working Humidity: ≤90% RH
Working Temperature: -10°C To 40°C/14°F To 104°F Dimensions (mm): 400mm X500mm X 700mm
Product Name: Roller Conveyor Scale Capacity: 150kg
Divisions: 10g Display: Big LCD Display
Function: Checkweigher Power Supply: 220V/50HZ
Weighing Range: 10-150000g
High Light:

SS304 Roller Conveyor Scale


High Accuracy Roller Conveyor Scale


150kg conveyor weighing system

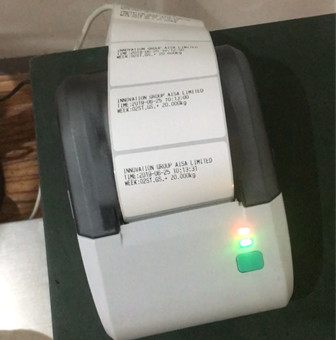

RC6060-IN420 roller conveyor scale with programmable thermal printer and sticker printer, with LED light alarm.


High Accuracy Conveyor Weigh Scale SS304 With Programmable Thermal or Sticker Printer


roller conveyor scale Capacity:150kg

Accuracy: OIML C3 100g, 150G. OR HIGHER PRECISION: 10g, 15G.


1. With Programmable printer

2. RS485 or RS232 Output /Modbus rtu available

  • Free PC software with programmable for Printer
  • Counting scale function

Special Function

  • Fast speed
  • High accuracy

SS304 150kg Roller Conveyor Scale 0

roller conveyor scale Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)



roller conveyor scale an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.


With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.



Counting scale working

According to the 2.2 regular, system working parameter F10=2, The controller will working at counting scale, the counting of the operating panel will be light on.


This indicating controller can do 100 different kinds of counting of the weighing. Before do the counting weighing, should according to the 4th regular of the , do the average weight setting of all the loading weight. And make sure the current loading code is same as counted loading code.


Working at weighing, press【↑/Accumulate】button, display window show the current loading goods code as “P= XX”, XX means the current loading good, can use 【→/Auto】,【↑/Accumulate】 button do the revising. After revising, press 【Exit】 button to back to the weighing working.


If the current loading goods had not done the average weight setting, the

Indicating controller will display “ E6 ”, should according toto set the average weight of the current loading goods.


If press 【→/Auto】button when weighing, can handover counting and weighing working of the indicating controller.


WhenAuto light on, the indicating controller is working at counting, display window show “n XXXXX”, it means the loading goods qty.


When 【→/Auto】light on, the indicating controller is working at weighting, display window show the weight of the loading goods, it is the common weighing.




High precision load cell for roller conveyor scale



High precision weighing display for roller conveyor scale



Metal parts for the roller conveyor scale

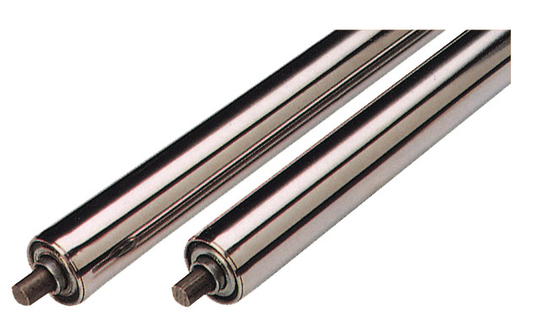

Rollers for roller conveyor scale







  • COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: AC adaptor, 100-240VAC, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • LABRADOR computer software for parameter and calibration settings
  • Units of Measurement: kg, lb
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Built-in clock

Weight Controller Data


Enclosure Material Stainless steel SS304
Units of Measurement kg, lb
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 71mm x 161mm
Dimensions (in) 8.9in x 3.7in x 6.34in
Display Type LCD
Display Digits 6 digits
Digit Height 25.4mm/1in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor, 100-240VAC, 50-60Hz
IP Rating IP66


Division 1, 2, 5, 10
Tare Range 100% of Cn
Maximum Number of Load Cells 8×350Ω or 16×700Ω
Maximum Power Consumption 6VA
Excitation Voltage 5VDC ± 5%
Fusible Link Fuse (slow blow) 1A
Communications Interface RS-232C, RS-485
Print Interface Serial interface


SS304 150kg Roller Conveyor Scale 1SS304 150kg Roller Conveyor Scale 2
